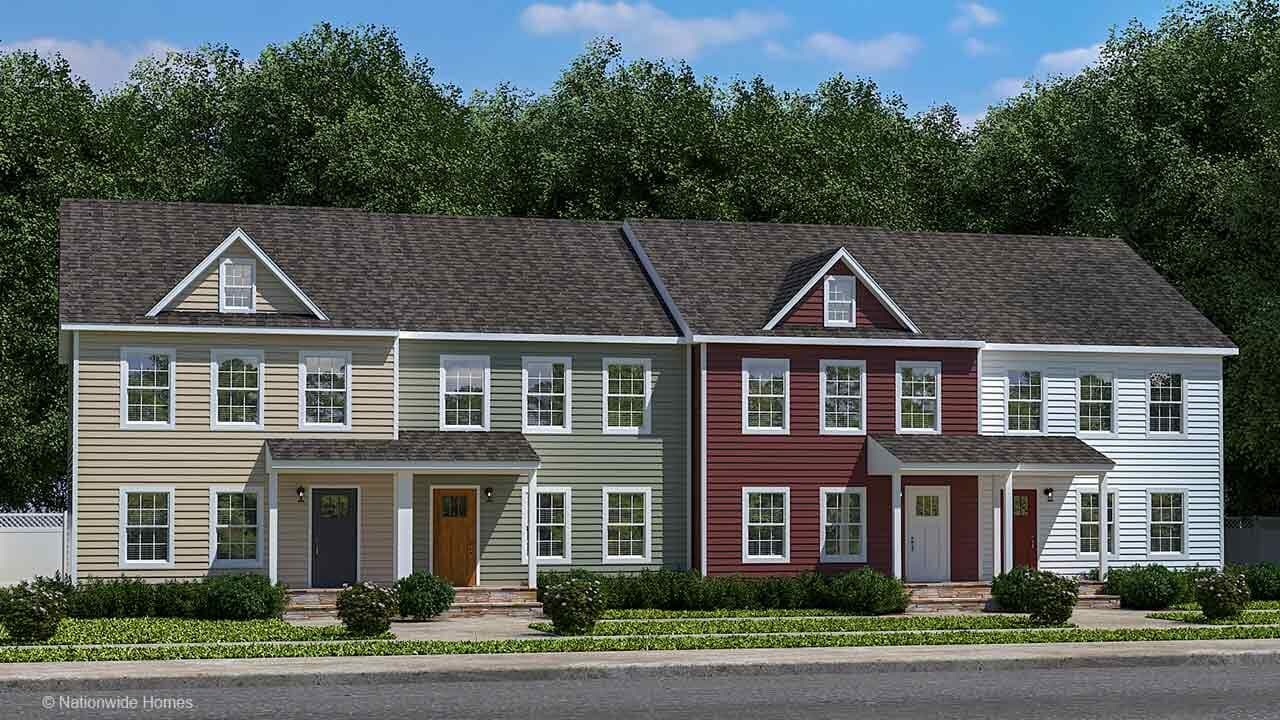

Landmark Multi-Family series

Construction

• Exterior Walls: 2”x 4” Wall Studs, 16” o.c.
• Ceiling Height: 8’
• Interior Walls: 2”x 4” Wall Studs, 16” o.c.
• Double Top Plates on Interior and Exterior Walls
• Mating Walls: 2”x 3” or 2”x 4” (Per Plans)
• Floor Joist: 2x10 @ 16” o.c.
• Floor Decking: ¾” Tongue-and-Groove OSB
• Exterior Wall Sheathing: 7/16” OSB
• Roof Pitch: 7/12, 9/12 & 12/12 Pitch @ 24” o.c. (Per Plans)
• Roof Sheathing: 7/16” OSB with Ply-Clips
• Overhangs: 12”
• Fire Protection as Required

Exterior Walls: 2”x 4” Wall Studs, 16” o.c.
Ceiling Height: 8’
Interior Walls: 2”x 4” Wall Studs, 16” o.c.
Double Top Plates on Interior and Exterior Walls
Mating Walls: 2”x 3” or 2”x 4” (Per Plans)
Floor Joist: 2x10 @ 16” o.c.
Floor Decking: ¾” Tongue-and-Groove OSB
Exterior Wall Sheathing: 7/16” OSB
Roof Pitch: 7/12, 9/12 & 12/12 Pitch @ 24” o.c. (Per Plans)
Roof Sheathing: 7/16” OSB with Ply-Clips
Overhangs: 12”
Fire Protection as Required

Exterior

• Siding: Double 5 Straight/Traditional Lap Vinyl Siding w/White Corners
• White Prefinished Fascia/Drip Edge; White Vinyl Soffit
• Roof Shingles: Architectural Over Synthetic Roof Underlayment
• Ridge Ventilation System
• Titan House Wrap
• Porches: 6” White Vinyl Post Wrap, Rails and Pickets (Per Plans)
• Windows: KINRO Single Hung Vinyl w/Screens, DP50,
• Low-E, 4/1 Grid Pattern
• 2” Window Blinds: OPTIONAL
• Exterior Window Treatment @ Front Elevation: 3” White Vinyl Trim All Shutters: OPTIONAL with 3” White Vinyl Trim (Included)
• Front Door: 3 to Choose From (See Décor Selector Guide)
• Rear/Utility Door: ½ Glass 4-Lite S262
• Sidelights: OPTIONAL
• Kwikset Smart Key Knob with Deadbolt

Siding: Double 5 Straight/Traditional Lap Vinyl Siding w/White Corners
White Prefinished Fascia/Drip Edge; White Vinyl Soffit
Roof Shingles: Architectural Over Synthetic Roof Underlayment
Ridge Ventilation System

Other

• Bath Fixtures: White
• Toilets: Elongated, Vitreous China
• Tubs and Showers: Fiberglass
• Glass Bypass Brushed Nickel Shower Door-48”/60” Showers (Per Plans)
• 4x6 or 4x8 Ceramic Shower @ Bath 1 (Per Plans): Includes
• Fiberglass Pan, Hand-Held Wand, Rainfall Shower Head & LED Light
• Pedestal Tub @ Bath 1 (Per Plans)
• Bath Faucets: Dual Handle Brushed Nickel Finish
• Bath Sink: 21” x 18” Rectangle
• Plumb for Ice Maker (Recessed Box In Wall)
• Plumbing Supply System: PEX
• Drain, Waste & Vent System: PVC
• Water Heater: Electric 50-Gallon High Efficiency
• Kitchen Sink: 8” Deep Stainless Steel, Double Bowl with Gooseneck Brushed Nickel Faucet
• Whole House Shut Off Valve
• One Exterior Hose Bib

Bath Fixtures: White
Toilets: Elongated, Vitreous China
Tubs and Showers: Fiberglass
Glass Bypass Brushed Nickel Shower Door-48”/60” Showers (Per Plans)

Mechanical

• Floor Insulation: OPTIONAL
• Exterior Walls: R-15 Insulation
• (OPTIONAL: R-19 Insulation with 2 x 6 Exterior Walls)
• Ceiling: R-38 Insulation (R-30 Between Knee Walls and Under Floor Decking of Capes and Triple Wide Models)
• Return Air Grille with Plenum & Pull Wire for Thermostat
• Floor Registers: OPTIONAL

Floor Insulation: OPTIONAL
Exterior Walls: R-15 Insulation
(OPTIONAL: R-19 Insulation with 2 x 6 Exterior Walls)
Ceiling: R-38 Insulation (R-30 Between Knee Walls and Under Floor Decking of Capes and Triple Wide Models)
Return Air Grille with Plenum & Pull Wire for Thermostat
Floor Registers: OPTIONAL

Interior

• Walls: 1/2” Drywall Primed, Smooth Finish, Painted Gray
• Ceilings: 1/2” High Strength Drywall, Smooth Finish, Painted White
• Base Molding: 3 ¼” Speed/Finished Coat (Pine)
• Door & Window Casing: 2 ¼” Colonial/Primed & Finished (Pine)
• 4-1/4” Crown Mold T/O (Except Closets) (Pine)
• Stairs: Carpet Grade w/Pine Treads-Sloped Wall w/Cap, Prefinished Handrail, White Skirt Boards-Pickets-Newel Posts (Per Plans)
• Carpet: 25 oz FHA with Deluxe 6# Padding (Shipped Loose) For Bedrooms, Bedroom Closets and Den
• Resolve Vinyl Plank Flooring (LVP): Baths and Utility
• Resolve Vinyl Plank Flooring (LVP): Living Room, Dining Room, Kitchen, Hall and Foyer (Shipped Loose)
• Interior Doors: Two Panel Hardboard
• Lever Brushed Nickel Interior Locksets
• Cabinets: Forevermark Full-Overlay Shaker, 36” Wall with Crown, Soft-Close Doors & Drawers, Brushed Nickel Knobs & Mating Toe Kicks, Lazy Susan, Pot & Pan Drawer
• Countertops: Laminate with Crescent Edge T/O
• Backsplash: Kitchen–Ceramic (See Décor Selector Guide for Standards)
• Backsplash: Baths-4” Matching Laminate (Ceramic Optional)

Mechanical

• Main Electric Panel: 200 AMP
• Smoke Detectors: Per Plan
• Interior Lighting: BN Fixtures, Wired, Braced & Prepped for Ceiling Fan In Living Room & Bedrooms with 2 Switches (Overhead Light Included)
• 2 Pendant Lights over Island or Peninsula Bar (Per Plans)
• LED Recessed Lights: Kitchen, Living Room & Over Shower in Bath #1
• Wall Mounted Vanity Lighting
• Electrical Gage Boxes: Nailed to Stud T/O, Sealed on Exterior Walls
• Exhaust Fans: Vented To Exterior
• General Wiring: Nonmetallic, 12 Gauge General Lighting Minimum
• ARC Fault Breakers Included
• 100 CFM Exhaust Fan @ Bath 1
• Interior Receptacle w/Night Light @ Hallways Greater Than 6’ Long
• Two Exterior Receptacles

Main Electric Panel: 200 AMP
Smoke Detectors: Per Plan
Interior Lighting: BN Fixtures, Wired, Braced & Prepped for Ceiling Fan In Living Room & Bedrooms with 2 Switches (Overhead Light Included)
2 Pendant Lights over Island or Peninsula Bar (Per Plans)

Kitchen

• Dishwasher
• Ventless Designer Canopy Range Hood (2 to Choose From)
• Includes Dryer Vent Box Recessed in Wall
• Dryer Ducted by Purchaser
• All Other Appliances: OPTIONAL

Dishwasher
Ventless Designer Canopy Range Hood (2 to Choose From)
Includes Dryer Vent Box Recessed in Wall
Dryer Ducted by Purchaser
All Other Appliances: OPTIONAL

Construction

• 20# Roof Load
• 90 MPH Construction/115 Vult
• Engineering/Submittal Fees (Up to $715)
• Stamped Prints for Permitting
• Pro-Set Included
• 2/10 Warranty
• NTA Labels

20# Roof Load
90 MPH Construction/115 Vult
Engineering/Submittal Fees (Up to $715)
Stamped Prints for Permitting
Pro-Set Included
2/10 Warranty
NTA Labels
