Property map Enter your address or APN to check if this home fits on your property

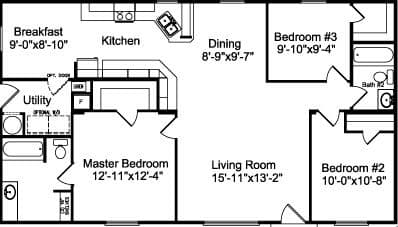

3 bedrooms
2 full bathrooms
1,296 sq. ft.
27' x 48'
American Dream standard features

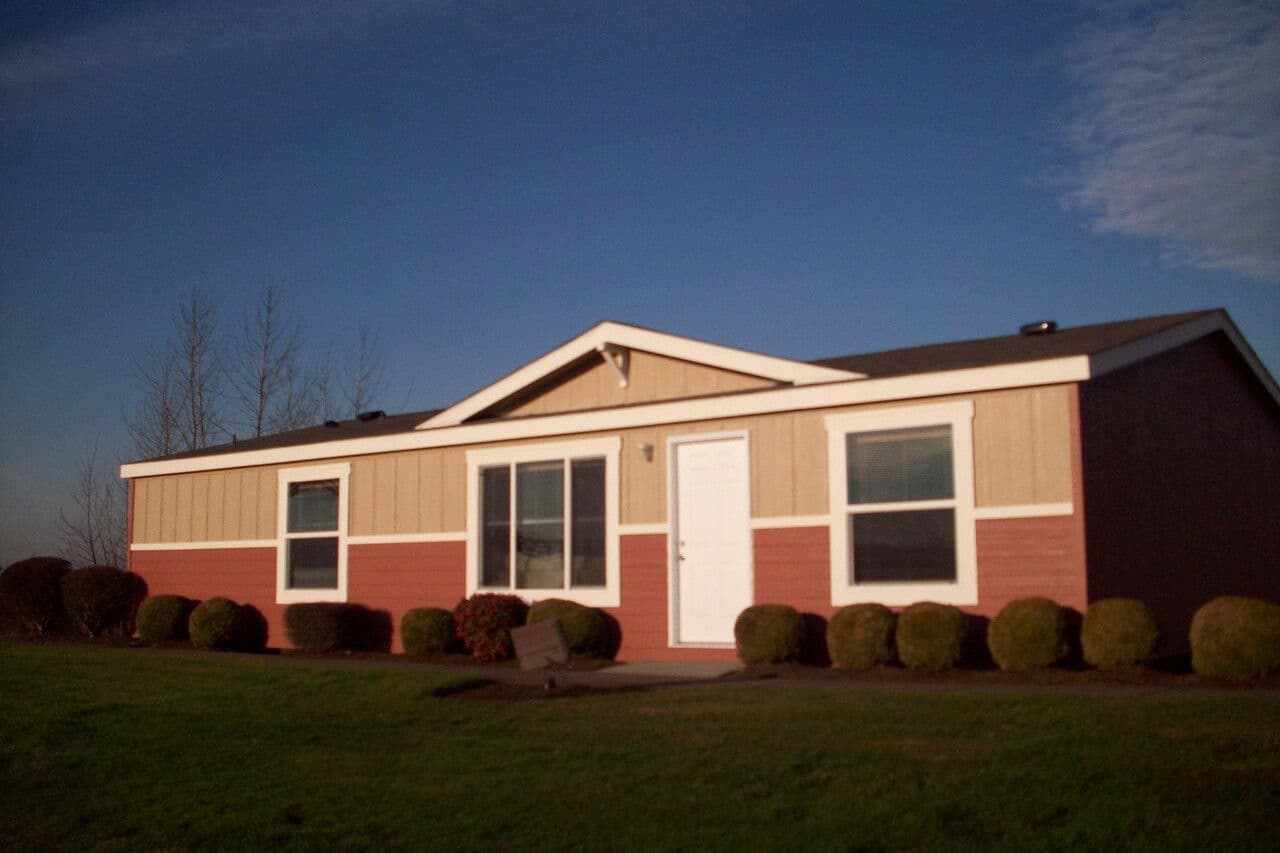

Exterior
Siding: Allura Panel Fibercement- Lap & Board Batt FDS Siding Underlayment: House Wrap Trim: 3.5" Allura Fibercement Fascia: 7.5" Allura Fibercement Soffit: HardiSoffit Cedarmill Roofing: Architectural Shingles Roofing Underlayment: Sythetic Windows: Vinly Frame Low-E Dual Glazed; 80" in LR Front Door: 36" Six-Panel with Horizon above Rear Door: 36" Six-Panel Exterior Floor Decking: Stained Wood- per print Hose Bib: Optional Dormer: Standard per plan Trove Homes
Affordable homes at your fingertips.
Get started with Trove Homes
Find, design, and order your next home in a few clicks.
Sign up
3 bedrooms
2 full bathrooms
1,296 sq. ft.
27' x 48'
Siding Underlayment: House Wrap
Trim: 3.5" Allura Fibercement
Fascia: 7.5" Allura Fibercement
Soffit: HardiSoffit Cedarmill
Roofing: Architectural Shingles
Roofing Underlayment: Sythetic
Windows: Vinly Frame Low-E Dual Glazed; 80" in LR Front Door: 36" Six-Panel with Horizon above Rear Door: 36" Six-Panel Exterior Floor Decking: Stained Wood- per print Hose Bib: Optional Dormer: Standard per plan Construction
Frame: I-Beam Chassis Axles: Recycled Tires Floor Joist: 2x6 16" OC or 2x8 16" OC on 14' or Wider Floors Floor Decking: 19/32 OSB Tongue & Groove Exterior Walls: 2x6 16" OC / 102" High Flat Ceiling Interior Walls: 16" OC @ Marriage Line 24" OC All Others Roof Trusses: 24" OC Roof Pitch & Load: 3/12 Pitch 30# Tall Flat Ceiling Eaves & Overhangs: 12" 27 Wide Plans, 10" 30 Wide Plans Ceiling: Flat Insulation: R40-R21-R38 (Ceiling - Walls - Floor) Heating: EB-15F Electric Furnace* Duct System: Insulated Graduated Fiberglass Heat Registers: In Line Air Return: Over Door Cross Overs: Flex Ducts Ventilation: Baths & Whole Home Air & Vapor Barrier: Sill Seal with Spray Vapor Barrier Crawl Space: N/A Attic Access: N/A
Frame: I-Beam Chassis Axles: Recycled Tires Floor Joist: 2x6 16" OC or 2x8 16" OC on 14' or Wider Floors Floor Decking: 19/32 OSB Tongue & Groove Exterior Walls: 2x6 16" OC / 102" High Flat Ceiling Interior Walls: 16" OC @ Marriage Line 24" OC All Others Roof Trusses: 24" OC Roof Pitch & Load: 3/12 Pitch 30# Tall Flat Ceiling Eaves & Overhangs: 12" 27 Wide Plans, 10" 30 Wide Plans Ceiling: Flat
Insulation: R40-R21-R38 (Ceiling - Walls - Floor) Heating: EB-15F Electric Furnace* Duct System: Insulated Graduated Fiberglass Heat Registers: In Line Air Return: Over Door Cross Overs: Flex Ducts Ventilation: Baths & Whole Home Air & Vapor Barrier: Sill Seal with Spray Vapor Barrier Crawl Space: N/A Attic Access: N/A Interior
Drywall Finish: Textured & Painted Prism White Drywall Corners: Square Including Windows w/Wood Sill Marriage Line Close-Up: Textured Beam Close-Up Cabinets: Durabilt 42" With Adj. Shelves & Shadow Box Cabinet Doors: Picture Frame Alkorcell Cabinet Pulls: Satin Silver Knobs Countertops: Wilsonart Laminate, HD Island & Tub Base Counter Edge: Wilsonart Laminate, Crescent Edge Island, Tub Base Backsplash: Stacked Ceramic Tile T/O, Accent Tile Behind Range Interior Doors: White Raised Panel Interior Door Hardware: Satin Silver Levers Door Trim: 2 1/4" White Square Door Casing Baseboards: 2 1/4" Square Baseboard Vinyl Areas Only Ceiling Cove: Optional Closet Shelving: Wood With Dowel Rod Window Coverings: Plant Built Wood Valances Blinds: Metal Miniblinds Throughout Carpet: Edgewater Pad: 7#, 7/16" Thick Rebond Carpet Pad Vinyl Flooring: Kitchen, Utility, Dining, Morning*, Entry & Baths Tile Flooring: Optional Laminate Flooring: Optional Accent Paint: None
Drywall Finish: Textured & Painted Prism White Drywall Corners: Square Including Windows w/Wood Sill Marriage Line Close-Up: Textured Beam Close-Up Cabinets: Durabilt 42" With Adj. Shelves & Shadow Box Cabinet Doors: Picture Frame Alkorcell Cabinet Pulls: Satin Silver Knobs Countertops: Wilsonart Laminate, HD Island & Tub Base Counter Edge: Wilsonart Laminate, Crescent Edge Island, Tub Base Backsplash: Stacked Ceramic Tile T/O, Accent Tile Behind Range Interior Doors: White Raised Panel Interior Door Hardware: Satin Silver Levers Door Trim: 2 1/4" White Square Door Casing
Baseboards: 2 1/4" Square Baseboard Vinyl Areas Only Ceiling Cove: Optional Closet Shelving: Wood With Dowel Rod Window Coverings: Plant Built Wood Valances Blinds: Metal Miniblinds Throughout Carpet: Edgewater Pad: 7#, 7/16" Thick Rebond Carpet Pad Vinyl Flooring: Kitchen, Utility, Dining, Morning*, Entry & Baths Kitchen
Kitchen Sink: 7" Deep Stainless Steel Double Bowl Kitchen Faucet: Nickel Single Lever Kitchen Sink Front: Fixed Drawer Front Shut Off Valves: All Fixtures & Whole Home Range: Black Freestanding Electric Range Ventilation: Black Broan Vertical Range Hood Refrigerator: Black 18cf Top & Bottom Frost Free Over Refridgerator: Shelf & Surround Water Heater: Rheem 40 Gal Electric Water Heater Access: Access Storage Shelves Utility Plumbing: Plumb for Washer Single Lever Gate Valves Special Plumbing: Plumb for Icemaker Gas Lines: N/A
Kitchen Sink: 7" Deep Stainless Steel Double Bowl Kitchen Faucet: Nickel Single Lever Kitchen Sink Front: Fixed Drawer Front Shut Off Valves: All Fixtures & Whole Home Range: Black Freestanding Electric Range Ventilation: Black Broan Vertical Range Hood Refrigerator: Black 18cf Top & Bottom Frost Free
Over Refridgerator: Shelf & Surround Water Heater: Rheem 40 Gal Electric Water Heater Access: Access Storage Shelves Utility Plumbing: Plumb for Washer Single Lever Gate Valves Special Plumbing: Plumb for Icemaker Gas Lines: N/A Mechanical
Mainpanel: 200 Amp Electrical Service Switches: Rocker Type Light Bulbs: LED Bulbs Installed Entry Lights: White Wall Mount Jelly Jar Closet Lights (Walk-in Size): 4" Recessed LED Can Light Wall Light: Optional Dining Room Lights: Rectangle Chandelier Morning Room Lights: Single Pendant light per plan Kitchen Area Lights: (4) 6" Recessed LED Can Lights Kitchen Sink Light: 6" Recessed LED Can Light Island or Bar Lighting: (2) Pendants Over Island Per Plan Utility & Hall Lights: 4" Recessed LED Can Light Bathroom Light: Bathroom Lights Per Plan Bedrooms Lights: Overhead Ceiling Light 2 Bulb Metro Fan (Wire): Optional TV Jack (Plate & Conduit): Optional Phone Jack (Plate & Conduit): Optional Freezer (Wire): Optional Dryer Hookup: Wire 220V GFCI Recept: (1) Exterior per plan Safety: Smoke Detectors
Mainpanel: 200 Amp Electrical Service Switches: Rocker Type Light Bulbs: LED Bulbs Installed Entry Lights: White Wall Mount Jelly Jar Closet Lights (Walk-in Size): 4" Recessed LED Can Light Wall Light: Optional Dining Room Lights: Rectangle Chandelier Morning Room Lights: Single Pendant light per plan Kitchen Area Lights: (4) 6" Recessed LED Can Lights Kitchen Sink Light: 6" Recessed LED Can Light Island or Bar Lighting: (2) Pendants Over Island Per Plan
Utility & Hall Lights: 4" Recessed LED Can Light Bathroom Light: Bathroom Lights Per Plan Bedrooms Lights: Overhead Ceiling Light 2 Bulb Metro Fan (Wire): Optional TV Jack (Plate & Conduit): Optional Phone Jack (Plate & Conduit): Optional Freezer (Wire): Optional Dryer Hookup: Wire 220V GFCI Recept: (1) Exterior per plan Safety: Smoke Detectors Bathroom
Master Bathroom Tub / Shower: 48" 1-piece Shower With Door (N/A 48' Plans) Tub / Shower Faucet: Single Control Anti-Scald Diverter Tub: Leisure w/Mirror Above (N/A on 48' Plans) Lavy: China Sink With Overflow (2ea 56' & 66' Plans) Lavy Faucet: Single Handle Lavy Faucets Toilet: Elongated Bowl Mirror: Trimmed Mirror Above Sink Hardware: Brushed Nickel Towel Hook & Tissue Holder Cabinet: Bank of Drawers Secondary Bathroom Tub / Shower: 60" 1-piece Fiberglass Tub/Shower Combo Tub / Shower Faucet: Single Control Anti-Scald Diverter Lavy: China Sink With Overflow Lavy Faucet: Single Handle Lavy Faucet Toilet: Elongated Bowl Mirror: Trimmed Mirror Above Sink Hardware: Brushed Nickel Towel Hook & Tissue Holder
Master Bathroom Tub / Shower: 48" 1-piece Shower With Door (N/A 48' Plans) Tub / Shower Faucet: Single Control Anti-Scald Diverter Tub: Leisure w/Mirror Above (N/A on 48' Plans) Lavy: China Sink With Overflow (2ea 56' & 66' Plans) Lavy Faucet: Single Handle Lavy Faucets Toilet: Elongated Bowl Mirror: Trimmed Mirror Above Sink Hardware: Brushed Nickel Towel Hook & Tissue Holder
Cabinet: Bank of Drawers Secondary Bathroom Tub / Shower: 60" 1-piece Fiberglass Tub/Shower Combo Tub / Shower Faucet: Single Control Anti-Scald Diverter Lavy: China Sink With Overflow Lavy Faucet: Single Handle Lavy Faucet Toilet: Elongated Bowl Mirror: Trimmed Mirror Above Sink Hardware: Brushed Nickel Towel Hook & Tissue Holder Other
*Homes under 1,000 SQ Ft to use 10KW furnace American Dream Features: 12" Plant Built Valance T/O Except Living Room, Living Room 8" Plant Built Valances, Accent Tile Behind Range Kitchen
*Homes under 1,000 SQ Ft to use 10KW furnace
American Dream Features: 12" Plant Built Valance T/O Except Living Room, Living Room 8" Plant Built Valances, Accent Tile Behind Range Kitchen Dealer License #: DL1609773
Siding: Allura Panel Fibercement- Lap & Board Batt FDS Siding Underlayment: House Wrap Trim: 3.5" Allura Fibercement Fascia: 7.5" Allura Fibercement Soffit: HardiSoffit Cedarmill Roofing: Architectural Shingles Roofing Underlayment: Sythetic Windows: Vinly Frame Low-E Dual Glazed; 80" in LR Front Door: 36" Six-Panel with Horizon above Rear Door: 36" Six-Panel Exterior Floor Decking: Stained Wood- per print Hose Bib: Optional Dormer: Standard per plan Frame: I-Beam Chassis Axles: Recycled Tires Floor Joist: 2x6 16" OC or 2x8 16" OC on 14' or Wider Floors Floor Decking: 19/32 OSB Tongue & Groove Exterior Walls: 2x6 16" OC / 102" High Flat Ceiling Interior Walls: 16" OC @ Marriage Line 24" OC All Others Roof Trusses: 24" OC Roof Pitch & Load: 3/12 Pitch 30# Tall Flat Ceiling
Tile Flooring: Optional
Laminate Flooring: Optional
Accent Paint: None
Eaves & Overhangs: 12" 27 Wide Plans, 10" 30 Wide Plans
Ceiling: Flat
Insulation: R40-R21-R38 (Ceiling - Walls - Floor)
Heating: EB-15F Electric Furnace*
Duct System: Insulated Graduated Fiberglass
Heat Registers: In Line
Air Return: Over Door
Cross Overs: Flex Ducts
Ventilation: Baths & Whole Home
Air & Vapor Barrier: Sill Seal with Spray Vapor Barrier
Crawl Space: N/A
Attic Access: N/A
Siding: Allura Panel Fibercement- Lap & Board Batt FDS Siding Underlayment: House Wrap Trim: 3.5" Allura Fibercement Fascia: 7.5" Allura Fibercement Soffit: HardiSoffit Cedarmill Roofing: Architectural Shingles Roofing Underlayment: Sythetic Windows: Vinly Frame Low-E Dual Glazed; 80" in LR Front Door: 36" Six-Panel with Horizon above Rear Door: 36" Six-Panel Exterior Floor Decking: Stained Wood- per print Hose Bib: Optional Dormer: Standard per plan Frame: I-Beam Chassis Axles: Recycled Tires Floor Joist: 2x6 16" OC or 2x8 16" OC on 14' or Wider Floors Floor Decking: 19/32 OSB Tongue & Groove
Exterior Walls: 2x6 16" OC / 102" High Flat Ceiling Interior Walls: 16" OC @ Marriage Line 24" OC All Others Roof Trusses: 24" OC Roof Pitch & Load: 3/12 Pitch 30# Tall Flat Ceiling Eaves & Overhangs: 12" 27 Wide Plans, 10" 30 Wide Plans Ceiling: Flat Insulation: R40-R21-R38 (Ceiling - Walls - Floor) Heating: EB-15F Electric Furnace* Duct System: Insulated Graduated Fiberglass Heat Registers: In Line Air Return: Over Door Cross Overs: Flex Ducts Ventilation: Baths & Whole Home Air & Vapor Barrier: Sill Seal with Spray Vapor Barrier Crawl Space: N/A Attic Access: N/A Kitchen Sink: 7" Deep Stainless Steel Double Bowl Kitchen Faucet: Nickel Single Lever Kitchen Sink Front: Fixed Drawer Front Shut Off Valves: All Fixtures & Whole Home Range: Black Freestanding Electric Range Ventilation: Black Broan Vertical Range Hood Refrigerator: Black 18cf Top & Bottom Frost Free Over Refridgerator: Shelf & Surround Water Heater: Rheem 40 Gal Electric Water Heater Access: Access Storage Shelves Utility Plumbing: Plumb for Washer Single Lever Gate Valves Special Plumbing: Plumb for Icemaker Gas Lines: N/A
Kitchen Sink: 7" Deep Stainless Steel Double Bowl Kitchen Faucet: Nickel Single Lever Kitchen Sink Front: Fixed Drawer Front Shut Off Valves: All Fixtures & Whole Home Range: Black Freestanding Electric Range Ventilation: Black Broan Vertical Range Hood Refrigerator: Black 18cf Top & Bottom Frost Free
Over Refridgerator: Shelf & Surround Water Heater: Rheem 40 Gal Electric Water Heater Access: Access Storage Shelves Utility Plumbing: Plumb for Washer Single Lever Gate Valves Special Plumbing: Plumb for Icemaker Gas Lines: N/A
Master Bathroom Tub / Shower: 48" 1-piece Shower With Door (N/A 48' Plans) Tub / Shower Faucet: Single Control Anti-Scald Diverter Tub: Leisure w/Mirror Above (N/A on 48' Plans) Lavy: China Sink With Overflow (2ea 56' & 66' Plans) Lavy Faucet: Single Handle Lavy Faucets Toilet: Elongated Bowl Mirror: Trimmed Mirror Above Sink Hardware: Brushed Nickel Towel Hook & Tissue Holder Cabinet: Bank of Drawers Secondary Bathroom Tub / Shower: 60" 1-piece Fiberglass Tub/Shower Combo Tub / Shower Faucet: Single Control Anti-Scald Diverter Lavy: China Sink With Overflow Lavy Faucet: Single Handle Lavy Faucet Toilet: Elongated Bowl Mirror: Trimmed Mirror Above Sink Hardware: Brushed Nickel Towel Hook & Tissue Holder
Master Bathroom Tub / Shower: 48" 1-piece Shower With Door (N/A 48' Plans) Tub / Shower Faucet: Single Control Anti-Scald Diverter Tub: Leisure w/Mirror Above (N/A on 48' Plans) Lavy: China Sink With Overflow (2ea 56' & 66' Plans) Lavy Faucet: Single Handle Lavy Faucets Toilet: Elongated Bowl Mirror: Trimmed Mirror Above Sink Hardware: Brushed Nickel Towel Hook & Tissue Holder
Cabinet: Bank of Drawers Secondary Bathroom Tub / Shower: 60" 1-piece Fiberglass Tub/Shower Combo Tub / Shower Faucet: Single Control Anti-Scald Diverter Lavy: China Sink With Overflow Lavy Faucet: Single Handle Lavy Faucet Toilet: Elongated Bowl Mirror: Trimmed Mirror Above Sink Hardware: Brushed Nickel Towel Hook & Tissue Holder
Drywall Finish: Textured & Painted Prism White Drywall Corners: Square Including Windows w/Wood Sill Marriage Line Close-Up: Textured Beam Close-Up Cabinets: Durabilt 42" With Adj. Shelves & Shadow Box Cabinet Doors: Picture Frame Alkorcell Cabinet Pulls: Satin Silver Knobs Countertops: Wilsonart Laminate, HD Island & Tub Base Counter Edge: Wilsonart Laminate, Crescent Edge Island, Tub Base Backsplash: Stacked Ceramic Tile T/O, Accent Tile Behind Range Interior Doors: White Raised Panel Interior Door Hardware: Satin Silver Levers Door Trim: 2 1/4" White Square Door Casing Baseboards: 2 1/4" Square Baseboard Vinyl Areas Only Ceiling Cove: Optional Closet Shelving: Wood With Dowel Rod Window Coverings: Plant Built Wood Valances Blinds: Metal Miniblinds Throughout Carpet: Edgewater Pad: 7#, 7/16" Thick Rebond Carpet Pad Vinyl Flooring: Kitchen, Utility, Dining, Morning*, Entry & Baths Tile Flooring: Optional Laminate Flooring: Optional Accent Paint: None
Drywall Finish: Textured & Painted Prism White Drywall Corners: Square Including Windows w/Wood Sill Marriage Line Close-Up: Textured Beam Close-Up Cabinets: Durabilt 42" With Adj. Shelves & Shadow Box Cabinet Doors: Picture Frame Alkorcell Cabinet Pulls: Satin Silver Knobs Countertops: Wilsonart Laminate, HD Island & Tub Base Counter Edge: Wilsonart Laminate, Crescent Edge Island, Tub Base Backsplash: Stacked Ceramic Tile T/O, Accent Tile Behind Range Interior Doors: White Raised Panel Interior Door Hardware: Satin Silver Levers Door Trim: 2 1/4" White Square Door Casing
Baseboards: 2 1/4" Square Baseboard Vinyl Areas Only Ceiling Cove: Optional Closet Shelving: Wood With Dowel Rod Window Coverings: Plant Built Wood Valances Blinds: Metal Miniblinds Throughout Carpet: Edgewater Pad: 7#, 7/16" Thick Rebond Carpet Pad Vinyl Flooring: Kitchen, Utility, Dining, Morning*, Entry & Baths
Images of homes are solely for illustrative purposes and should not be relied upon. Images may not accurately represent the actual condition of a home as constructed, and may contain options which are not standard on all homes.
Tile Flooring: Optional
Laminate Flooring: Optional
Accent Paint: None
