Marlette Special 3074
3 Bed
2 Bath
2,216 Sq. Ft.
30' x 74'
3 Bed
2 Bath
2,216 Sq. Ft.
30' x 74'

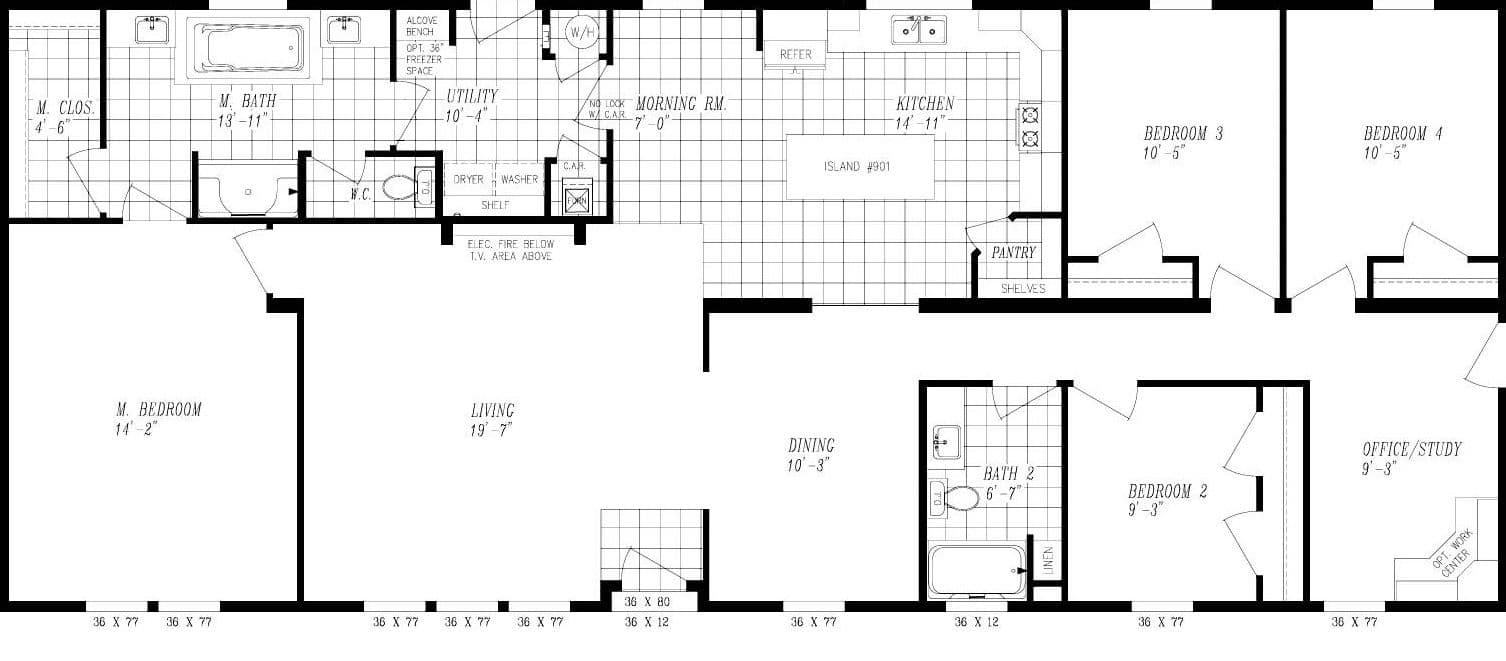

Floor Plan

    Marlette special 3074 floor plan home features

    Property map

    Enter your address or APN to check if this home fits on your property

    Enter your property street address or APN

    Marlette Special 3074

    3 bedrooms

    2 full bathrooms

    2,216 sq. ft.

    30' x 74'

    See brochureStart your projectDesign home
    Marlette Special standard features

    Construction

    • Certainteed Architectural Fiberglass Shingles (Nailed, not Stapled) - Limited Lifetime Warranty
    • Asphalt Shingle Underlayment
    • 7/16″ OSB Roof Decking
    • Nominal 3/12 Roof Pitch
    • 9′ Tall Sidewalls (108″) with Flat Ceilings
    • 30# Engineered Roof Load with 24″ o.c Rafter (Higher Roof Loads Available)
    • Full Sidewall Eaves and Overhangs (Model Specific Sizing)
    • Weather Resistant Housewrap Under Siding
    • 8″ Cement Fascia
    • Vented Ridge Cap with Natural Air Flow Eave Venting for Roof Cavity
    • Kinro Low-E Vinyl Framed Windows
    • Foundation Ready Set Back Frame
    • 2x6 Exterior Walls with 16″ o.c Studs
    Trove Homes logo

    Trove Homes

    Affordable homes at your fingertips.

      Pages

      HomesMapSign upSign in

      Help

      Contact usTerms of ServicePrivacy Policy

      Get started with Trove Homes

      Find, design, and order your next home in a few clicks.

      Sign up


      Marlette Special 3074

      3 bedrooms

      2 full bathrooms

      2,216 sq. ft.

      30' x 74'

      See brochureStart your projectDesign home
    • Sherwin Williams Exterior Paint 100% Acrylic Satin Finish
    • 19/32″ Tongue & Groove OSB Floor Decking - Double Secured with Nails & Alpha Glue
    • Minimum 2x6 Floor Joists Spaced at 16″ o.c
    • Certified, Award Winning Loop Heat Duct System with In-Floor Crossovers
    • White, 36″ Fiberglass Front Door with Peephole, Knocker and Deadbolt
    • White, 36″ 9-lite Rear Door with Deadbolt
    • White ″High Gloss″ Trim Around Exterior Doors
    • Brushed Nickel Locksets and Hinges - Keyed Alike
    • Black Carriage Style Exterior Porch Lights at Back Door
    • Cement Lap Siding with Structural Sheathing - Front Door Side
    • LP SmartSide Panel Siding - Endwalls and Back Door Sidewall
    • Large Set-Back Dormer with Eyebrow and LP Smartpanel Accent Area
    • 5/4″ Window Trim - Front Door Sidewall / 4″ LP Trim - End Walls & Back Door Sidewall
    • Double 2x3 Marriage Line Walls
    • Zone 3 Insulation Package - R22 Floor, R19 Walls, and R22 Ceiling
    • 2x3 Interior Walls with 24″ o.c Studs
    • Recessed Entry with Composite Decking
    • Exterior Hose Bibb on Back of Home
      • Certainteed Architectural Fiberglass Shingles (Nailed, not Stapled) - Limited Lifetime Warranty
      • Asphalt Shingle Underlayment
      • 7/16″ OSB Roof Decking
      • Nominal 3/12 Roof Pitch
      • 9′ Tall Sidewalls (108″) with Flat Ceilings
      • 30# Engineered Roof Load with 24″ o.c Rafter (Higher Roof Loads Available)
      • Full Sidewall Eaves and Overhangs (Model Specific Sizing)
      • Weather Resistant Housewrap Under Siding
      • 8″ Cement Fascia
      • Vented Ridge Cap with Natural Air Flow Eave Venting for Roof Cavity
      • Kinro Low-E Vinyl Framed Windows
      • Foundation Ready Set Back Frame
      • 2x6 Exterior Walls with 16″ o.c Studs
      • Sherwin Williams Exterior Paint 100% Acrylic Satin Finish
      • 19/32″ Tongue & Groove OSB Floor Decking - Double Secured with Nails & Alpha Glue
      • Minimum 2x6 Floor Joists Spaced at 16″ o.c
      • Certified, Award Winning Loop Heat Duct System with In-Floor Crossovers
      • White, 36″ Fiberglass Front Door with Peephole, Knocker and Deadbolt
      • White, 36″ 9-lite Rear Door with Deadbolt
      • White ″High Gloss″ Trim Around Exterior Doors
      • Brushed Nickel Locksets and Hinges - Keyed Alike
      • Black Carriage Style Exterior Porch Lights at Back Door
      • Cement Lap Siding with Structural Sheathing - Front Door Side
      • LP SmartSide Panel Siding - Endwalls and Back Door Sidewall
      • Large Set-Back Dormer with Eyebrow and LP Smartpanel Accent Area
      • 5/4″ Window Trim - Front Door Sidewall / 4″ LP Trim - End Walls & Back Door Sidewall
      • Double 2x3 Marriage Line Walls
      • Zone 3 Insulation Package - R22 Floor, R19 Walls, and R22 Ceiling
      • 2x3 Interior Walls with 24″ o.c Studs
      • Recessed Entry with Composite Decking
      • Exterior Hose Bibb on Back of Home

      Interior

      • Orange Peel Tape and Textured Walls and Ceilings with Radius Corners
      • Sherwin Williams Interior Eggshell Paint with Spray on Vapor Barrier Primer
      • Flat Ceiling with Orange Peel Finish
      • 25oz Shaw Carpet with Stain and Soil Resistance Treatment
      • Congoleum LuxFlor Vinyl Sheet Flooring with Scotchguard Protector
      • Foyer Linoleum
      • White ″High Gloss″ Base Trim in Vinyl Sheet Flooring Areas
      • 2-Panel Cathedral Interior Doors with 3 Morticed Hinges and Round Knobs
      • Brushed Nickel Door Hardware with Round Brushed Nickel Knobs
      • White Wood Window Sills in Living Areas and Laminate Sills in Wet Areas
      • White Trim Ring, 2 Bulb, Surface Mount Ceiling Lights in Bedrooms
      • 6″ Recessed Can Lights in Kitchen, Baths, Utility Room, Dining Room and Hallways
      • White ″High Gloss″ Door Casing Throughout Home
      • 2″ White Faux Wood Mini Blinds
      • Orange Peel Tape and Textured Walls and Ceilings with Radius Corners
      • Sherwin Williams Interior Eggshell Paint with Spray on Vapor Barrier Primer
      • Flat Ceiling with Orange Peel Finish
      • 25oz Shaw Carpet with Stain and Soil Resistance Treatment
      • Congoleum LuxFlor Vinyl Sheet Flooring with Scotchguard Protector
      • Foyer Linoleum
      • White ″High Gloss″ Base Trim in Vinyl Sheet Flooring Areas
      • 2-Panel Cathedral Interior Doors with 3 Morticed Hinges and Round Knobs
      • Brushed Nickel Door Hardware with Round Brushed Nickel Knobs
      • White Wood Window Sills in Living Areas and Laminate Sills in Wet Areas
      • White Trim Ring, 2 Bulb, Surface Mount Ceiling Lights in Bedrooms
      • 6″ Recessed Can Lights in Kitchen, Baths, Utility Room, Dining Room and Hallways
      • White ″High Gloss″ Door Casing Throughout Home
      • 2″ White Faux Wood Mini Blinds

      Mechanical

      • Smart Comfort by Carrier Electric Furnace - Sized Accordingly
      • Wire and Brace for Celing Fan in Living and Family Rooms
      • Switched Electrical Wall Receptacle in Living and Family Rooms
      • EcoBee3 Lite Programmable Thermostat
      • Whole House Exhaust Fan for Fresh Air Exchanges and Ventilation
      • Exterior GFI on Back Door Side
      • Air Conditioning Ready with (2) 3/4″ Conduit and Empty Breaker Slot
      • Combination Smoke / Co2 Detectors with Battery Backup
      • Whole House Water Shut Off Valve
      • Individual Plumbing Shut Off Valves at All Sinks and Stools
      • Total Electric Home with 200 Amp Service (Gas Available)
      • PEX Plumbing System with Poly-Alloy Fittings
      • Copper Wiring Throughout - Fully Grounded
      • Wired and Vented for Clothes Dryer
      • Plumbed and Wired for Clothes Washer
      • Frigidaire 25.5 Cu. Ft., Side-by-Side Refrigerator (Black or White)
      • Frigidaire 30″ Freestanding Electric Range (Black or White)
      • Frigidaire 24″ Built-In Dishwasher (Black or White)
      • Frigidaire 1.6 Cu. Ft. Over-the-Range Microwave (Black or White)
      • Rheem, 40 Gallon Electric Water Heater with Dual Element & Pan
      • Smart Comfort by Carrier Electric Furnace - Sized Accordingly
      • Wire and Brace for Celing Fan in Living and Family Rooms
      • Switched Electrical Wall Receptacle in Living and Family Rooms
      • EcoBee3 Lite Programmable Thermostat
      • Whole House Exhaust Fan for Fresh Air Exchanges and Ventilation
      • Exterior GFI on Back Door Side
      • Air Conditioning Ready with (2) 3/4″ Conduit and Empty Breaker Slot
      • Combination Smoke / Co2 Detectors with Battery Backup
      • Whole House Water Shut Off Valve
      • Individual Plumbing Shut Off Valves at All Sinks and Stools
      • Total Electric Home with 200 Amp Service (Gas Available)
      • PEX Plumbing System with Poly-Alloy Fittings
      • Copper Wiring Throughout - Fully Grounded
      • Wired and Vented for Clothes Dryer
      • Plumbed and Wired for Clothes Washer
      • Frigidaire 25.5 Cu. Ft., Side-by-Side Refrigerator (Black or White)
      • Frigidaire 30″ Freestanding Electric Range (Black or White)
      • Frigidaire 24″ Built-In Dishwasher (Black or White)

      Kitchen

      • All Wood Cabinet Construction with Hardwood Doors
      • 42″ Overhead Cabinets
      • Crown Molding on Overhead Cabinets
      • White Wood Shelving in all Pantries, Closets and Utility Rooms
      • Concealed, Adjustable Hinges on All Cabinet Doors
      • (2) Adjustable Overhead Shelves in Kitchen
      • Refrigerator Overhead Cabinet
      • White Lined Base and Overhead Cabinets
      • 3/8″ Dadoed Wood Drawers
      • Deluxe, Full Extension, Ball Bearing Drawer Guides
      • Brushed Nickel Knobs on Cabinet Doors and Drawers
      • Bank of 3 Drawers in Kitchen
      • Drawer over Door Cabinet Construction in Kitchen
      • 8″ Deep Stainless Steel Kitchen Sink
      • Fire Extinguisher Under Kitchen Sink
      • Laminate Countertops, Backsplash and Edge Throughout Home
      • Pfister Brushed Nickel 1-Handle Kitchen Faucet with Side Spray
      • All Wood Cabinet Construction with Hardwood Doors
      • 42″ Overhead Cabinets
      • Crown Molding on Overhead Cabinets
      • White Wood Shelving in all Pantries, Closets and Utility Rooms
      • Concealed, Adjustable Hinges on All Cabinet Doors
      • (2) Adjustable Overhead Shelves in Kitchen
      • Refrigerator Overhead Cabinet
      • White Lined Base and Overhead Cabinets
      • 3/8″ Dadoed Wood Drawers
      • Deluxe, Full Extension, Ball Bearing Drawer Guides
      • Brushed Nickel Knobs on Cabinet Doors and Drawers
      • Bank of 3 Drawers in Kitchen
      • Drawer over Door Cabinet Construction in Kitchen
      • 8″ Deep Stainless Steel Kitchen Sink
      • Fire Extinguisher Under Kitchen Sink
      • Laminate Countertops, Backsplash and Edge Throughout Home
      • Pfister Brushed Nickel 1-Handle Kitchen Faucet with Side Spray

      Bathroom

      • Power Exhaust Fan
      • Elongated Stools
      • 2 Bulb Vanity Light Above Bathroom Sink
      • Privacy Locks on All Baths
      • Pfister Faucet Package in All Tubs/Showers - Brushed Nickel
      • Brushed Nickel Towel Bars and Tissue Holders
      • Pfister Brushed Nickel Dual Lever Faucets
      • White Square China Sinks with Pop Up Drain and Overflow
      • Deluxe Master Bath with Window, Walk-In Shower, Deck Tub, Dual Sinks and Linen Cabinet (Model Specific)
      • 36″x60″ Fiberglass One Piece Tub/Shower in Hall Baths
      • Bank of Drawers in Master Bathroom
      • Laminate Countertops with 4″ Tall Laminate Backsplash
      • Dual Lever Tub Faucet in Master Bath
      • Power Exhaust Fan
      • Elongated Stools
      • 2 Bulb Vanity Light Above Bathroom Sink
      • Privacy Locks on All Baths
      • Pfister Faucet Package in All Tubs/Showers - Brushed Nickel
      • Brushed Nickel Towel Bars and Tissue Holders
      • Pfister Brushed Nickel Dual Lever Faucets
      • White Square China Sinks with Pop Up Drain and Overflow
      • Deluxe Master Bath with Window, Walk-In Shower, Deck Tub, Dual Sinks and Linen Cabinet (Model Specific)
      • 36″x60″ Fiberglass One Piece Tub/Shower in Hall Baths
      • Bank of Drawers in Master Bathroom
      • Laminate Countertops with 4″ Tall Laminate Backsplash
      • Dual Lever Tub Faucet in Master Bath

      Dealer License #: DL1609773

      |
      Powered by BuildTrove.com
      1. Catalog
      2. Marlette Special
      3. Marlette Special 3074
    • Frigidaire 1.6 Cu. Ft. Over-the-Range Microwave (Black or White)
    • Rheem, 40 Gallon Electric Water Heater with Dual Element & Pan
    • View similar homes
