Homes | The Chariot 24442A
The Chariot 24442A Continue
2 bedrooms
2 full bathrooms
946 sq. ft.
24' x 44'
Construction

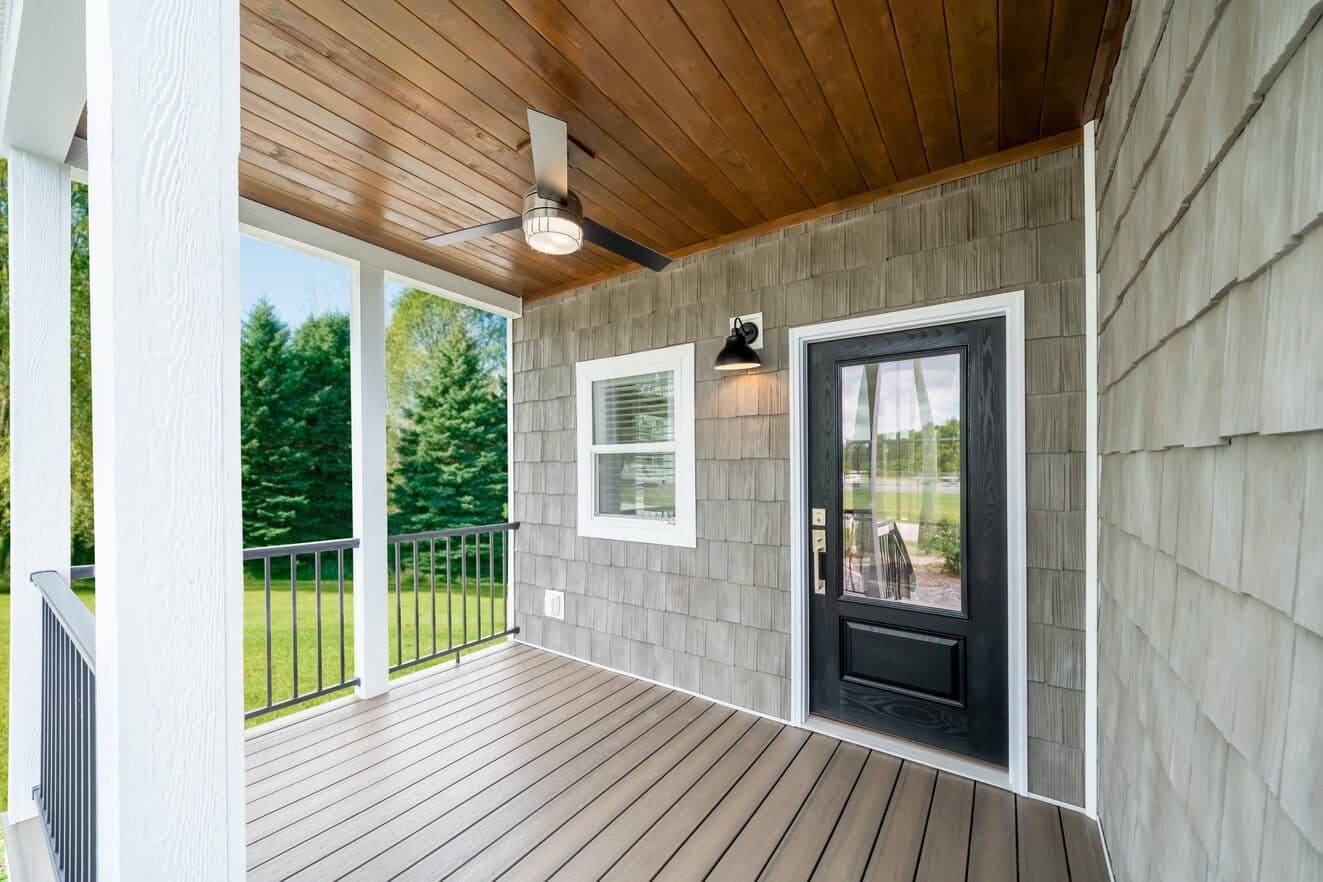

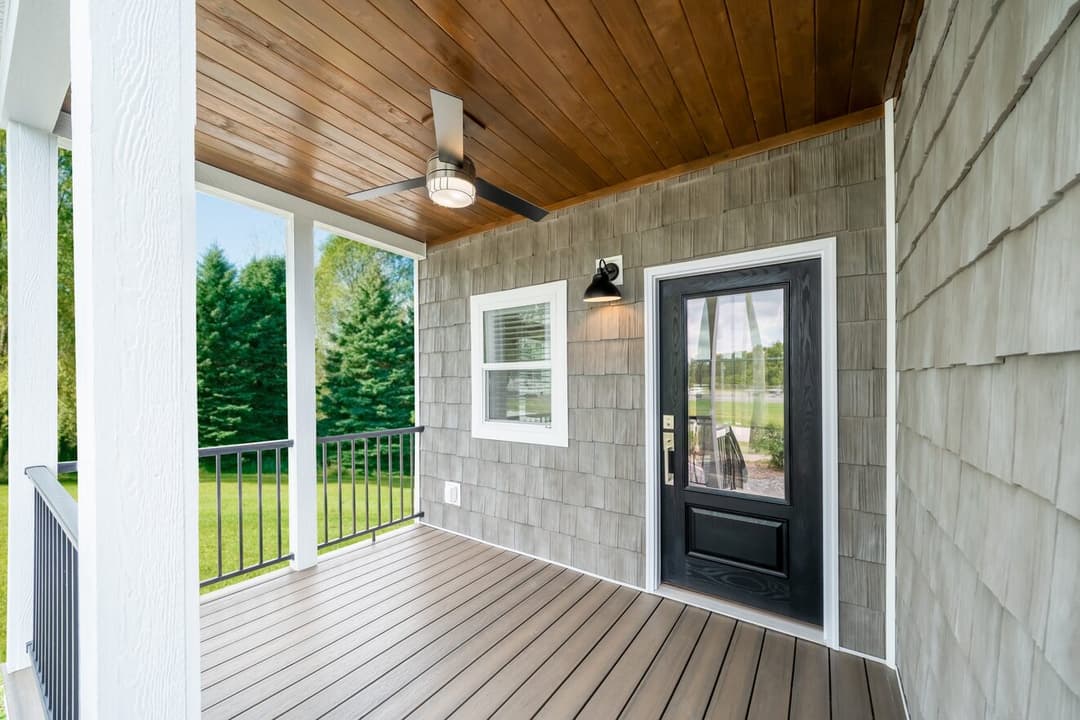

STRUCTURAL 360 Wind Zone 3 Note - Shipping Height - 14' 6" CHASSIS & FLOORS 360 Axles - Recycled Chassis - 10" I Beam Floor Decking - OSB T & G Floor Frame - Bottom Board - Poly Floor Joist - 2x6 @ 16" OC INSULATION 360 Insulation - Ceiling R30 Insulation - Exterior Wall R19 Insulation - Floor R11 PORCH 360 Porch - 5' w/Composite Decking Porch - Rails & Posts - Vinyl - White Porch - Black Spindles SIDEWALL & INTERIOR WALLS 360 Trove Homes
Affordable homes at your fingertips.
Get started with Trove Homes
Find, design, and order your next home in a few clicks.
Sign up Property map Enter your address or APN to check if this home fits on your property
STRUCTURAL 360 Wind Zone 3 Note - Shipping Height - 14' 6" CHASSIS & FLOORS 360 Axles - Recycled Chassis - 10" I Beam Floor Decking - OSB T & G Floor Frame - Bottom Board - Poly Floor Joist - 2x6 @ 16" OC INSULATION 360 Insulation - Ceiling R30 Insulation - Exterior Wall R19 Insulation - Floor R11 PORCH 360 Porch - 5' w/Composite Decking Porch - Rails & Posts - Vinyl - White Porch - Black Spindles SIDEWALL & INTERIOR WALLS 360 Interior Walls - 2 x 3 & 2 x 4 w/1" Bottom & 1" Top Plate Sidewalls - 108" Sidewalls - 2" x 6" - 16" O.C. WINDOWS 360 Window - Insulated w/Out Grids EXTERIOR DOORS 360
2 bedrooms
2 full bathrooms
946 sq. ft.
24' x 44'
Interior Walls - 2 x 3 & 2 x 4 w/1" Bottom & 1"
Top Plate
Sidewalls - 108"
Sidewalls - 2" x 6" - 16" O.C.
WINDOWS 360
Window - Insulated w/Out Grids
EXTERIOR DOORS 360
Door - Exterior - 1 Lite 36" w/ int Blind - O/S
Door - Exterior - 1/2 Lite 36" w/Int Blind - O/S
Exterior - Soffits - Vented
Fascia - Cementious
Rafters - 5 1/2" Heeled Truss, 16" O.C.
Roof - Architectural Shingles - 30 Year
Roof - Sheathing 7/16" OSB
Roof Pitch - 3:12 (Nominal)
Roof Type - Flat Truss
STRUCTURAL 360 Wind Zone 3 Note - Shipping Height - 14' 6" CHASSIS & FLOORS 360 Axles - Recycled Chassis - 10" I Beam Floor Decking - OSB T & G Floor Frame - Bottom Board - Poly Floor Joist - 2x6 @ 16" OC INSULATION 360 Insulation - Ceiling R30 Insulation - Exterior Wall R19 Insulation - Floor R11 PORCH 360 Porch - 5' w/Composite Decking Porch - Rails & Posts - Vinyl - White Porch - Black Spindles
SIDEWALL & INTERIOR WALLS 360 Interior Walls - 2 x 3 & 2 x 4 w/1" Bottom & 1" Top Plate Sidewalls - 108" Sidewalls - 2" x 6" - 16" O.C. WINDOWS 360 Window - Insulated w/Out Grids EXTERIOR DOORS 360 Door - Exterior - 1 Lite 36" w/ int Blind - O/S Door - Exterior - 1/2 Lite 36" w/Int Blind - O/S Exterior - Soffits - Vented Fascia - Cementious Rafters - 5 1/2" Heeled Truss, 16" O.C. Roof - Architectural Shingles - 30 Year Roof - Sheathing 7/16" OSB Roof Pitch - 3:12 (Nominal) Roof Type - Flat Truss Mechanical
TILITIES 360 Ducts Overhead - R6 Computemp Exhaust Fan Furnace - Omit & Make Air Ready Return Air - Sealed PLUMBING 360 Detector - Smoke Detector Faucet - Kitchen - Gooseneck - Single Touch Sink - Kitchen - Solid Surface - White Icemaker - Plumbed & Installed Washer & Dryer -Plumb & Wire Only Exterior Water Heater Door Water Heater - 30 Gallon Electric Water Lines - PEX Water Shut Off Valves at Sinks & Toilets Hose Bibb - Frost Free ELECTRIC 360 Electric Service - 100 Amp Recept - Exterior - GFI Recept - USB Charging Station Switch - Interior Rocker T/O TV Jacks
TILITIES 360 Ducts Overhead - R6 Computemp Exhaust Fan Furnace - Omit & Make Air Ready Return Air - Sealed PLUMBING 360 Detector - Smoke Detector Faucet - Kitchen - Gooseneck - Single Touch Sink - Kitchen - Solid Surface - White Icemaker - Plumbed & Installed Washer & Dryer -Plumb & Wire Only
Exterior Water Heater Door Water Heater - 30 Gallon Electric Water Lines - PEX Water Shut Off Valves at Sinks & Toilets Hose Bibb - Frost Free ELECTRIC 360 Electric Service - 100 Amp Recept - Exterior - GFI Recept - USB Charging Station Switch - Interior Rocker T/O TV Jacks Bathroom

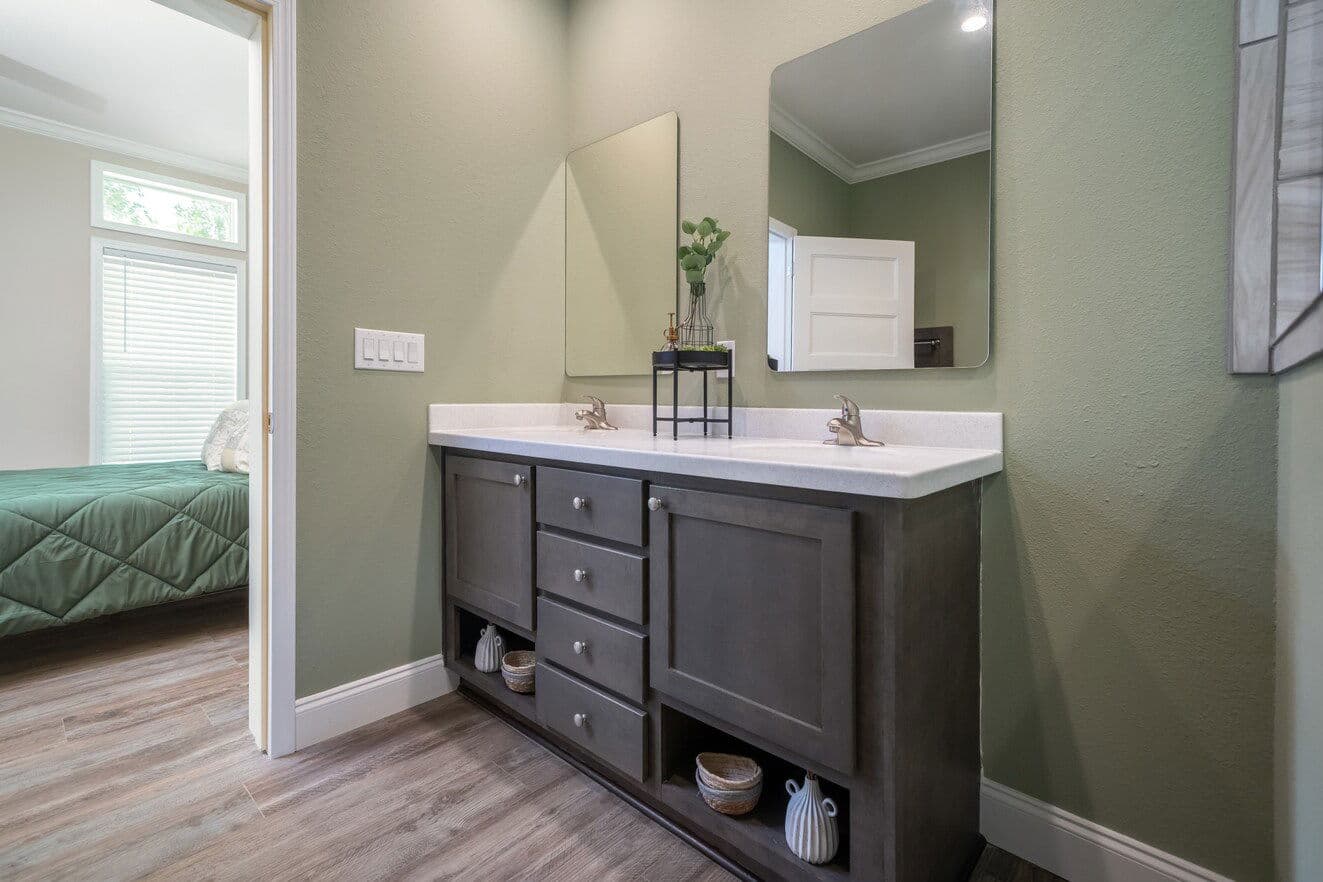

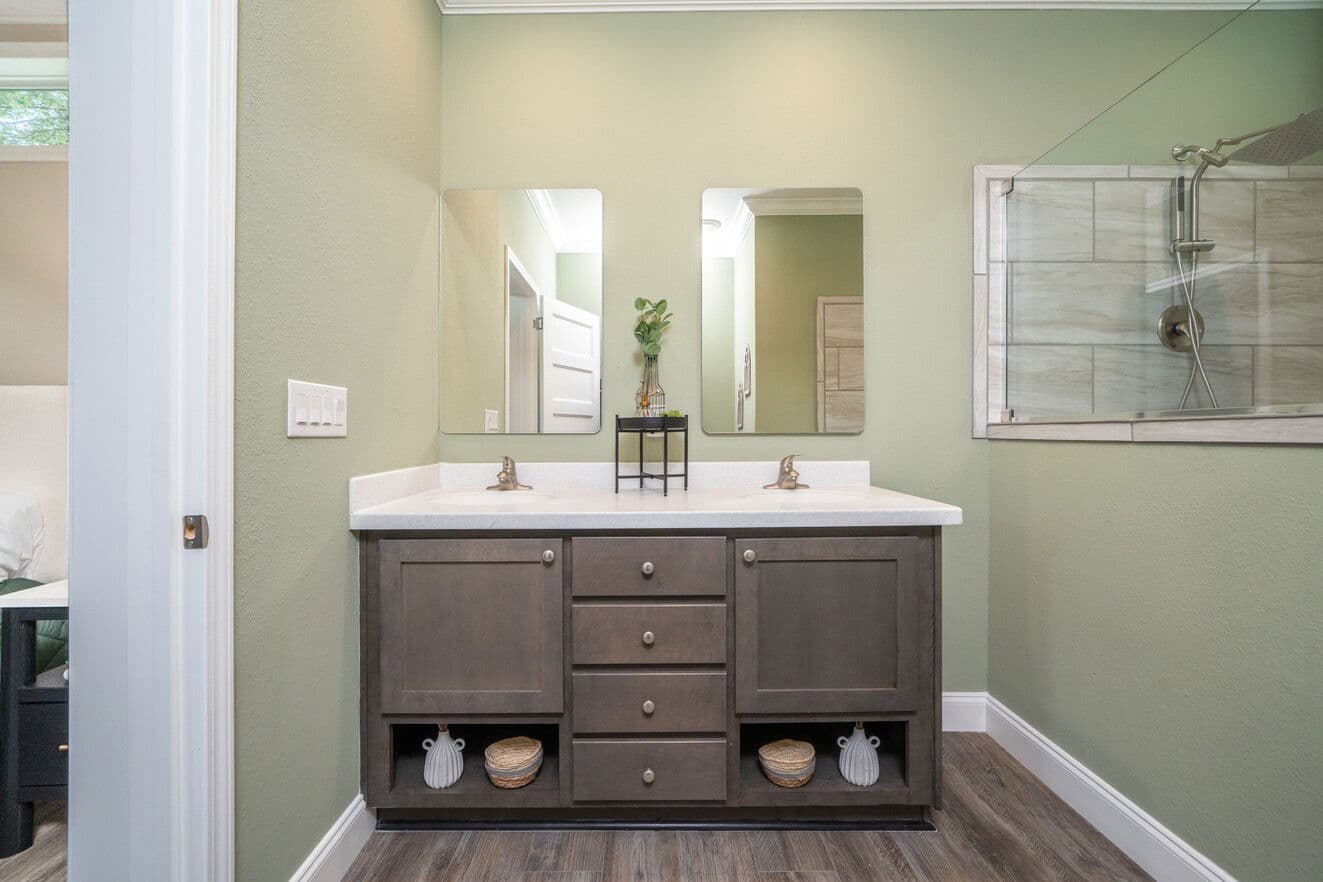

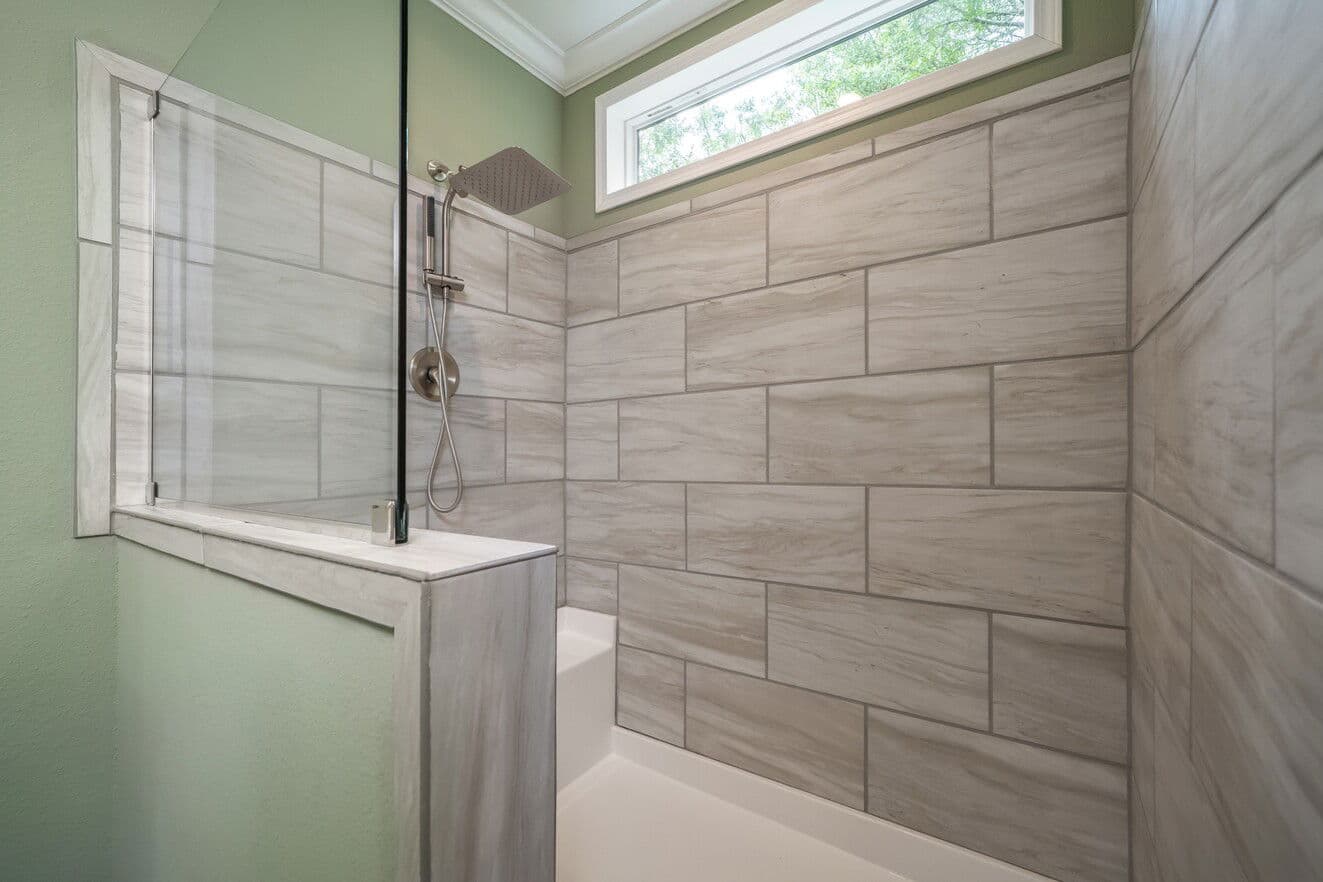

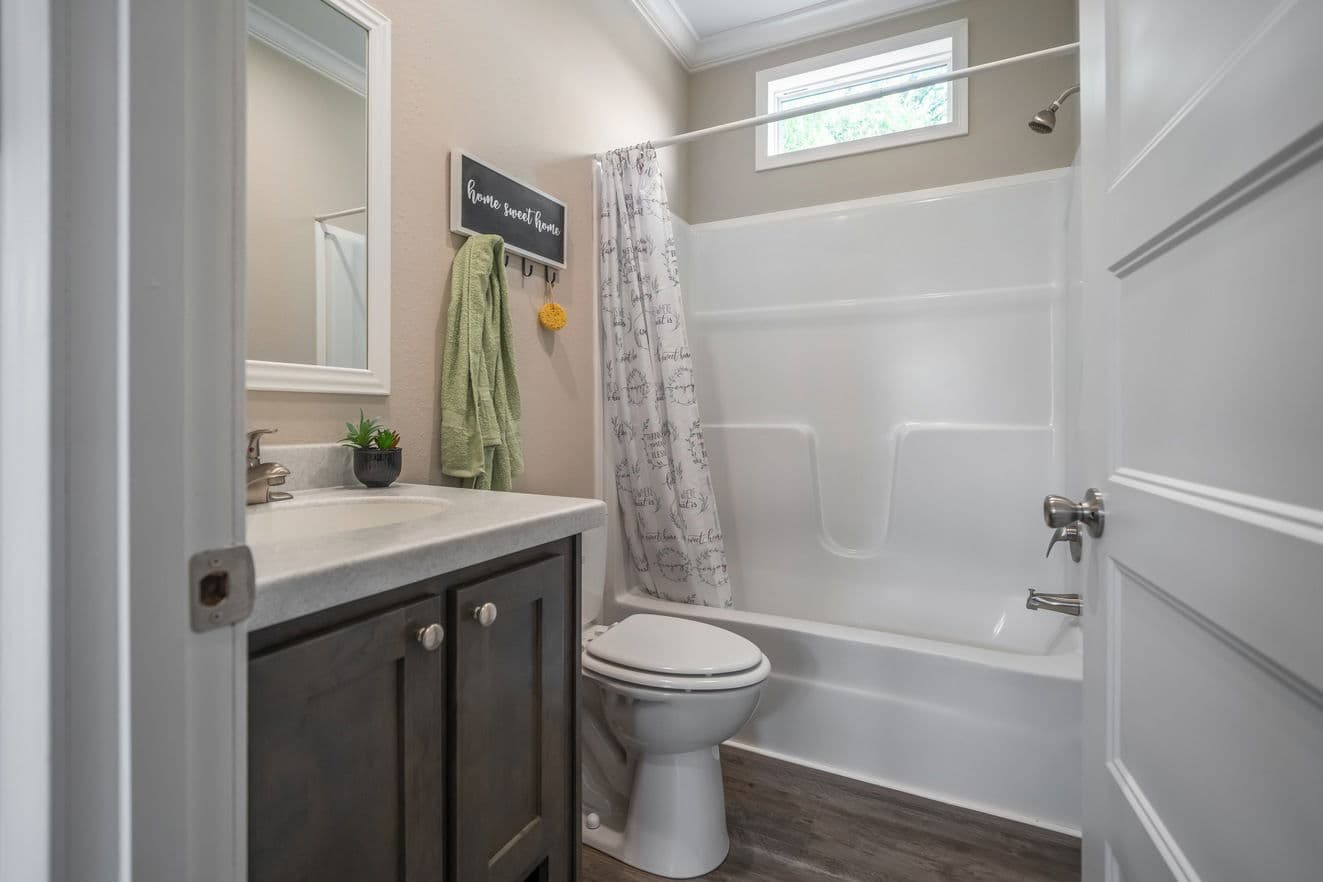

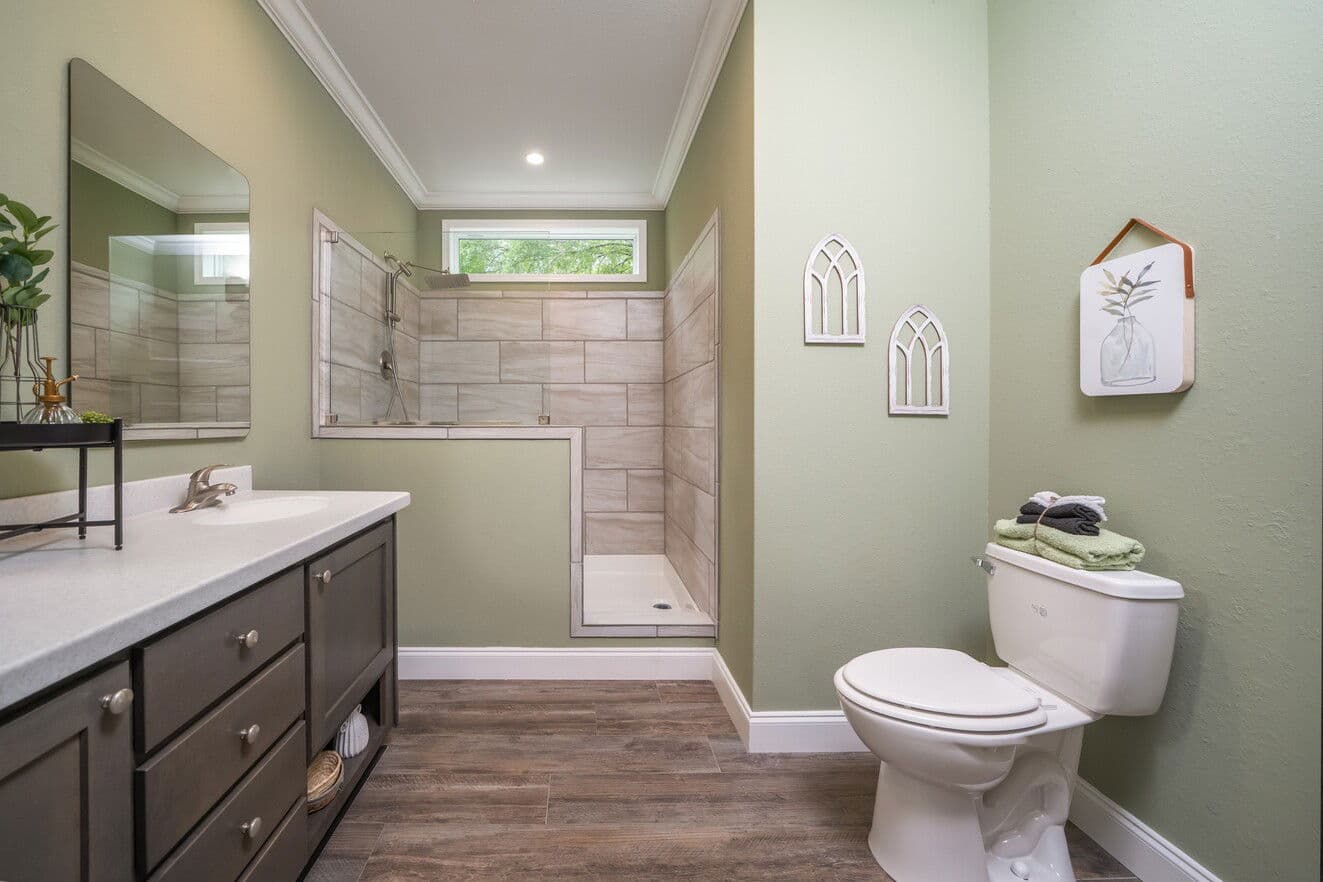

Faucet - Anti-Scald Tub/Shower Faucet - Single Lever - Lavy Sink - Lavy - Solid Surface Mirror - Over Lavy Trimmed w/2" Stiles Ship Loose - Towel Bar & Tissue Holder Shower - 60" DumaWall Faux Tile Glass Enclosure - Clear Glass - Frameless Toilet - Raised - Comfort Height Lavy - 36" High Cabinets All Bath(s) Tile Backsplash - Single Row Overhead Cab - Toilet Topper Light - LED - Bath Over Lavy
Faucet - Anti-Scald Tub/Shower Faucet - Single Lever - Lavy Sink - Lavy - Solid Surface Mirror - Over Lavy Trimmed w/2" Stiles Ship Loose - Towel Bar & Tissue Holder Shower - 60" DumaWall Faux Tile
Glass Enclosure - Clear Glass - Frameless Toilet - Raised - Comfort Height Lavy - 36" High Cabinets All Bath(s) Tile Backsplash - Single Row Overhead Cab - Toilet Topper Light - LED - Bath Over Lavy Interior

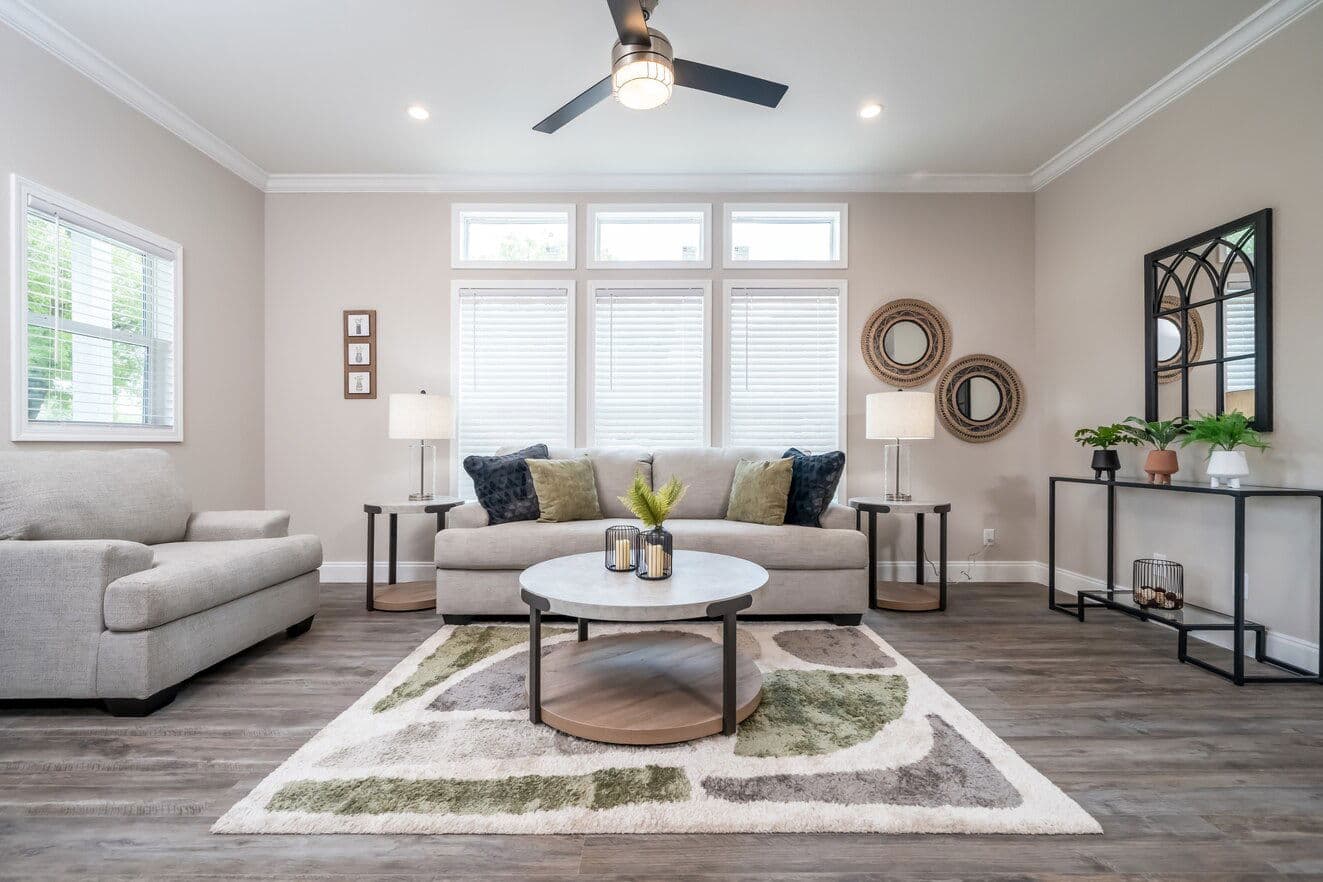

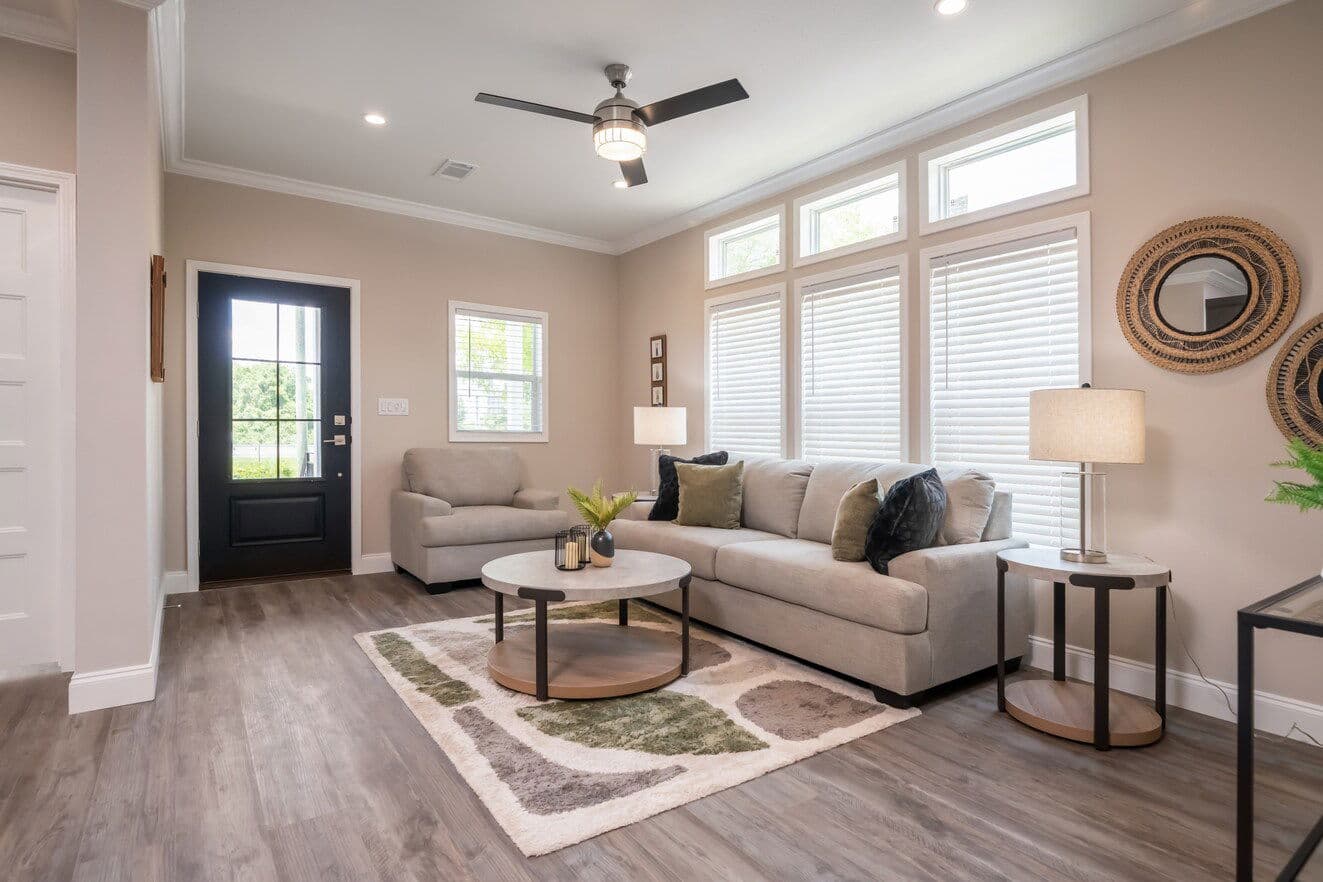

Blinds - 2" Faux Wood T/O - White Ceiling - 9' Flat Ceiling - Knock Down Door - Interior - Pocket Door - Interior - 5 Panel T/O Shirt/Skirt - Master Closet Door - Interior - 5 Panel Closet Hardware - Door Interior Knobs Hardware - Door Interior - Pocket Door Floor Covering - Laminate ILO Vinyl (per Sq Ft) Molding - Baseboard - 3" T/O Molding - Cove 3" - T/O T & T - T/O w/Trimmed Windows & Drs Window Trim - 2" White Stiles DINING/LIVING ROOM CABINETS 360 Tile Backsplash – Hall BEDROOM CABINETS 360 Base Cab - Night Stands w/Overheads Tile Backsplash - Single Row Countertop - Solid Surface - Bedroom Chest Ceiling Fan - Installed - 42" Satin Ceiling Fan - Installed - 52" Satin Ceiling Fan - Wire and Brace Only Light - LED - Over Shower Light - LED T/O Light - Pin Up (2) - Bedroom
Blinds - 2" Faux Wood T/O - White Ceiling - 9' Flat Ceiling - Knock Down Door - Interior - Pocket Door - Interior - 5 Panel T/O Shirt/Skirt - Master Closet Door - Interior - 5 Panel Closet Hardware - Door Interior Knobs Hardware - Door Interior - Pocket Door Floor Covering - Laminate ILO Vinyl (per Sq Ft) Molding - Baseboard - 3" T/O Molding - Cove 3" - T/O T & T - T/O w/Trimmed Windows & Drs
Window Trim - 2" White Stiles DINING/LIVING ROOM CABINETS 360 Tile Backsplash – Hall BEDROOM CABINETS 360 Base Cab - Night Stands w/Overheads Tile Backsplash - Single Row Countertop - Solid Surface - Bedroom Chest Ceiling Fan - Installed - 42" Satin Ceiling Fan - Installed - 52" Satin Ceiling Fan - Wire and Brace Only Light - LED - Over Shower Kitchen

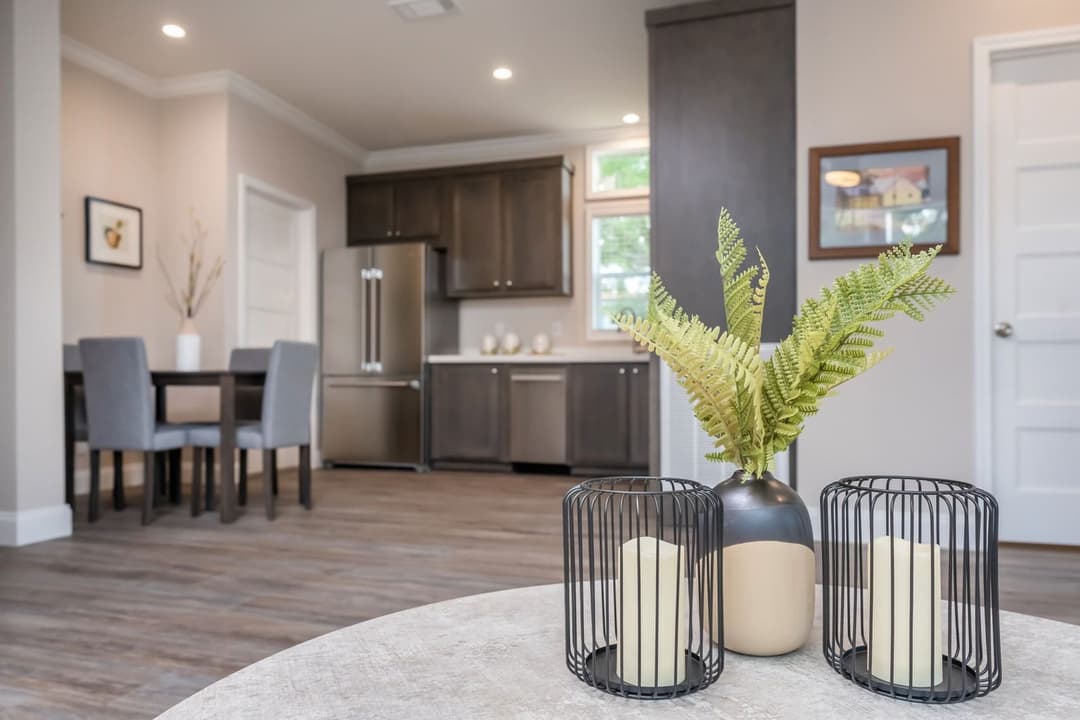

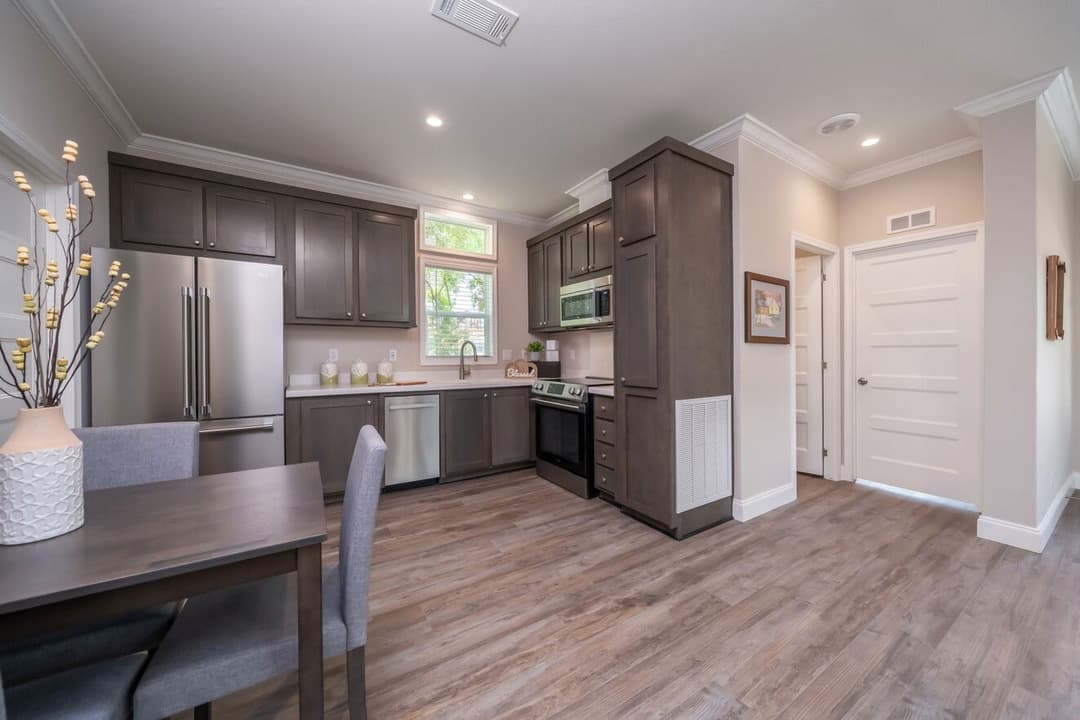

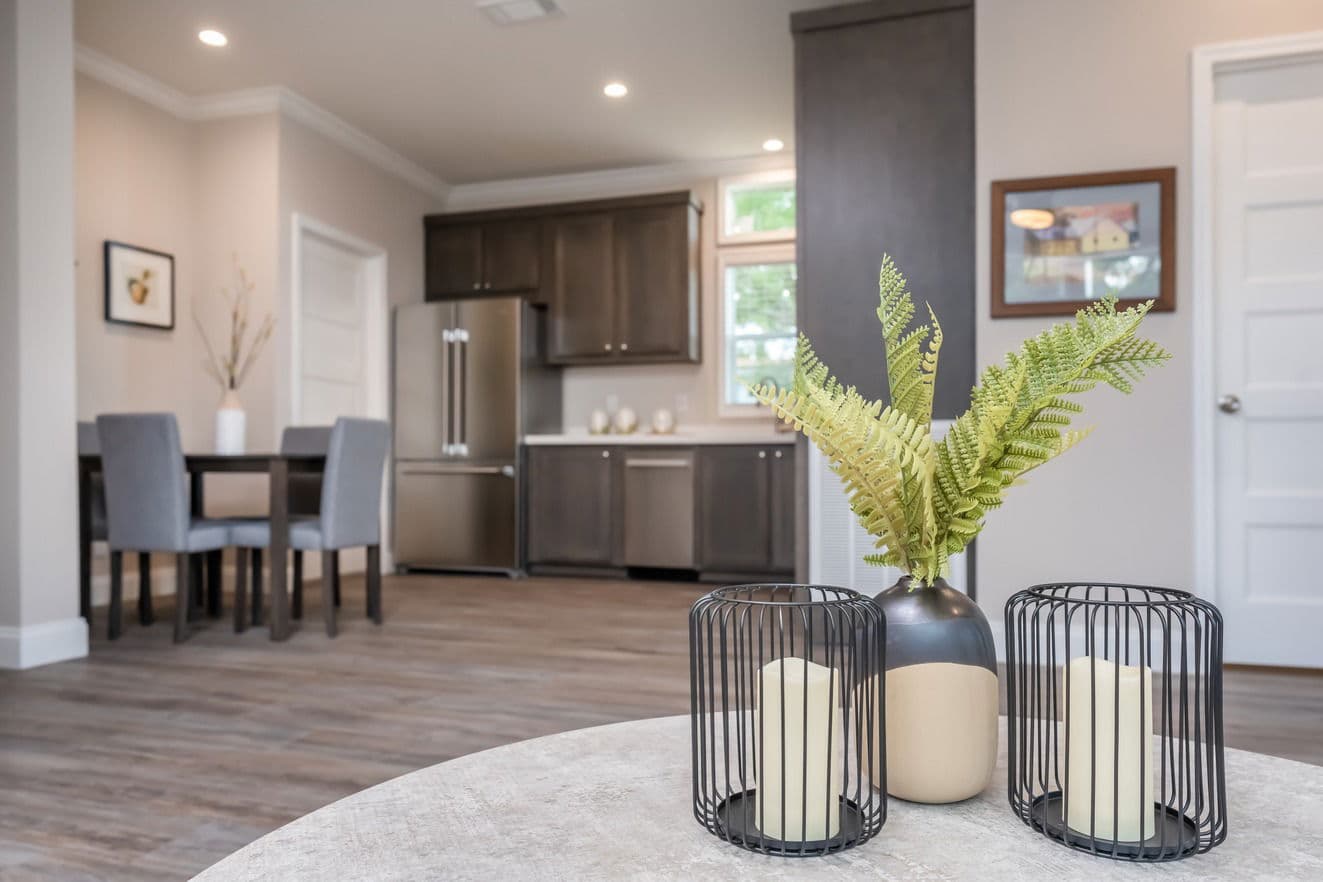

Adjustable Shelf - Overhead - 1/2" Adjustable Shelves - Overhead - 2 Shelves Base Cab - Drawer Bank in Kitchen (1) Cab Doors - Shaker Hardwood Doors & Wrapped Stiles Cabs - Interior - Finished to Match (except Dr Backs & Drws) Cabs - Soft Close Doors T/O Cabs - Stile - 3/4" Overhead Cab - Finished Bottoms Overhead Cab - Over Range Countertop - Solid Surface - Kitchen & Bath & Hallway Hardware - Cabinet Pulls - Pewter Hardware - Hidden Hinges Tile Backsplash - Single Row Tile Backsplash - Behind Range to Microwave Appliances - Stainless Steel Microwave - Over Range Range Hood - Cabinet w/Doors (per Plan) Refrigerator - 16.11 CF 30" Center Depth Bottom Freezer w/Ice maker Range - Electric - Slide In
Adjustable Shelf - Overhead - 1/2" Adjustable Shelves - Overhead - 2 Shelves Base Cab - Drawer Bank in Kitchen (1) Cab Doors - Shaker Hardwood Doors & Wrapped Stiles Cabs - Interior - Finished to Match (except Dr Backs & Drws) Cabs - Soft Close Doors T/O Cabs - Stile - 3/4" Overhead Cab - Finished Bottoms Overhead Cab - Over Range Countertop - Solid Surface - Kitchen & Bath & Hallway

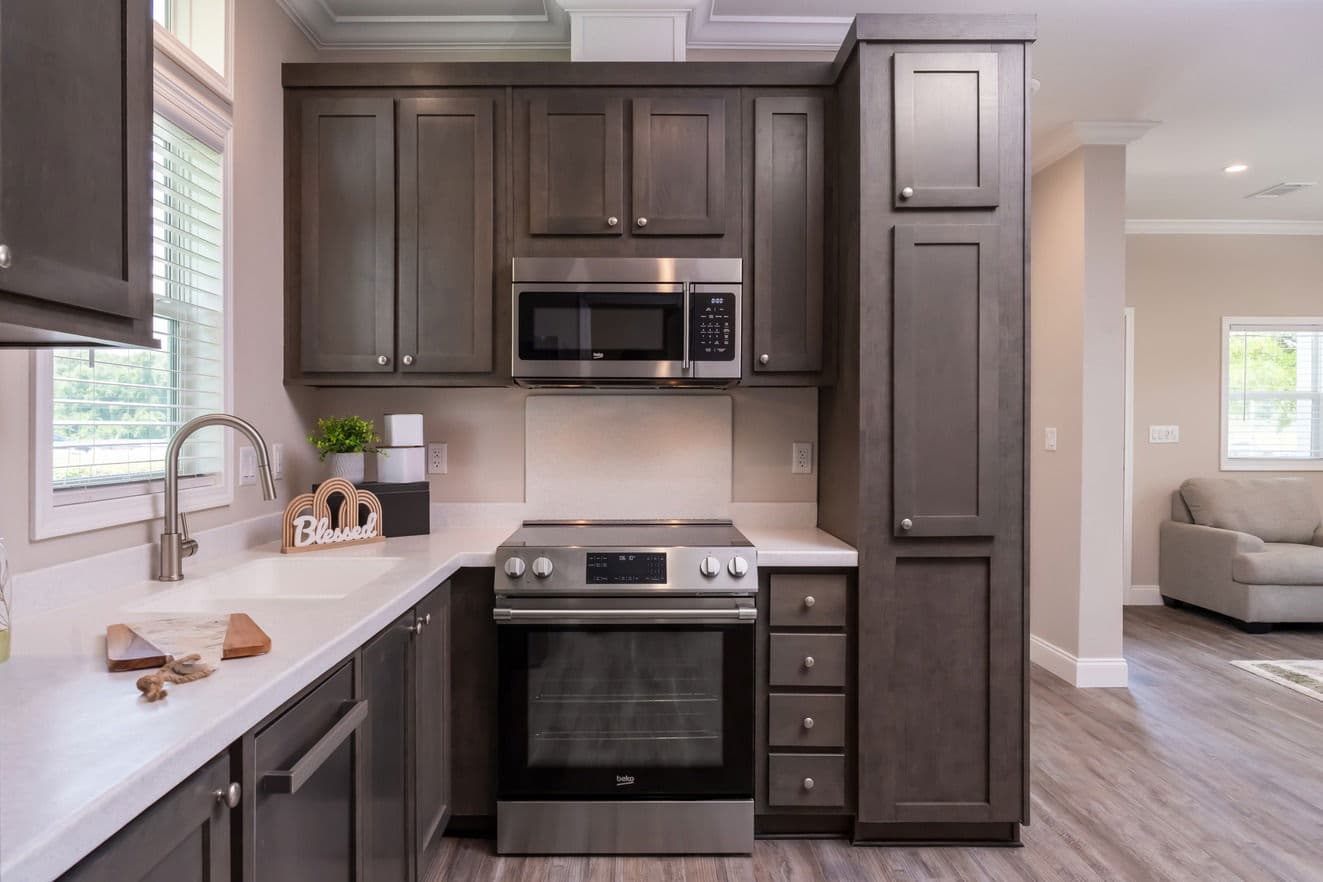

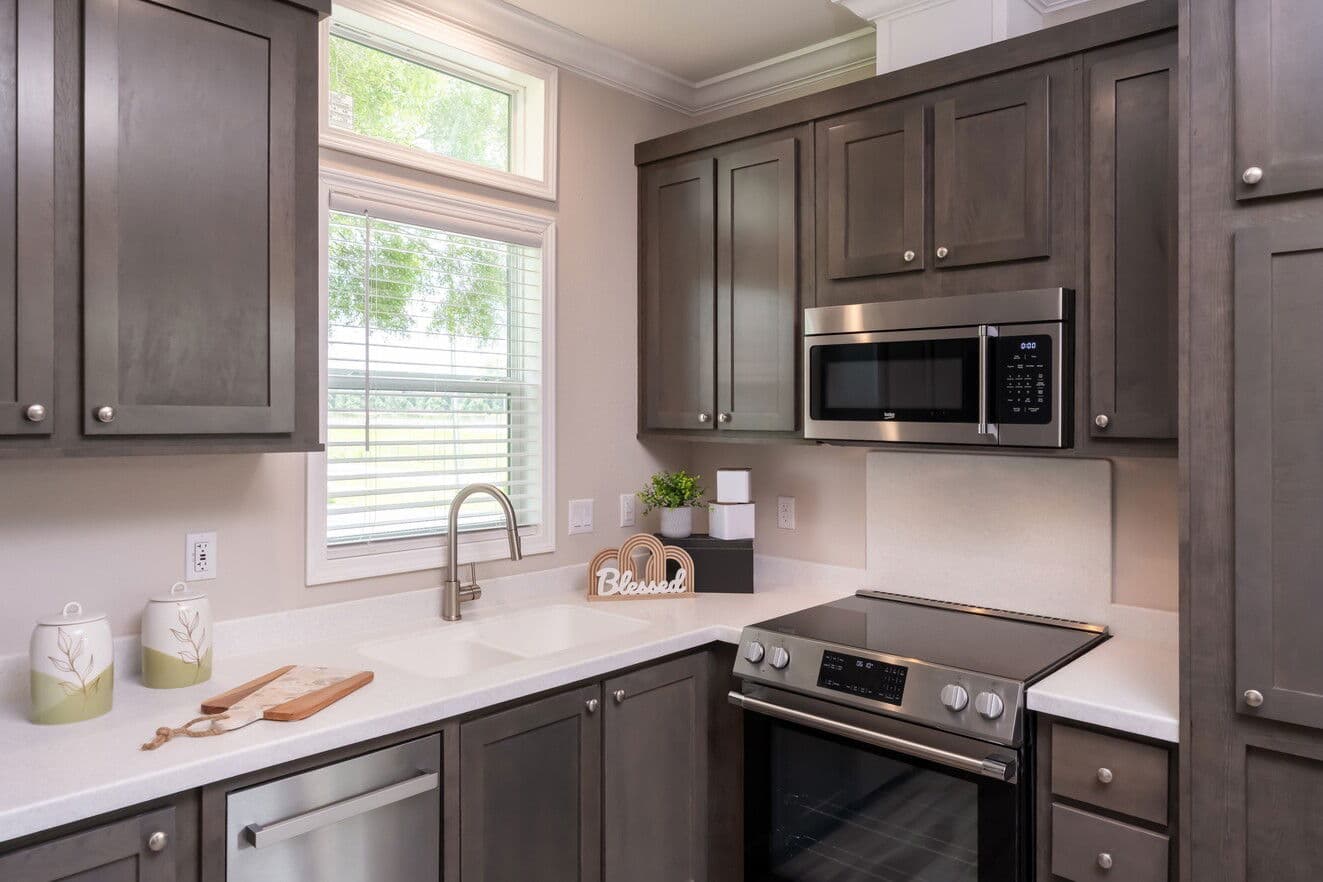

Hardware - Cabinet Pulls - Pewter Hardware - Hidden Hinges Tile Backsplash - Single Row Tile Backsplash - Behind Range to Microwave Appliances - Stainless Steel Microwave - Over Range Range Hood - Cabinet w/Doors (per Plan) Refrigerator - 16.11 CF 30" Center Depth Bottom Freezer w/Ice maker Range - Electric - Slide In Exterior

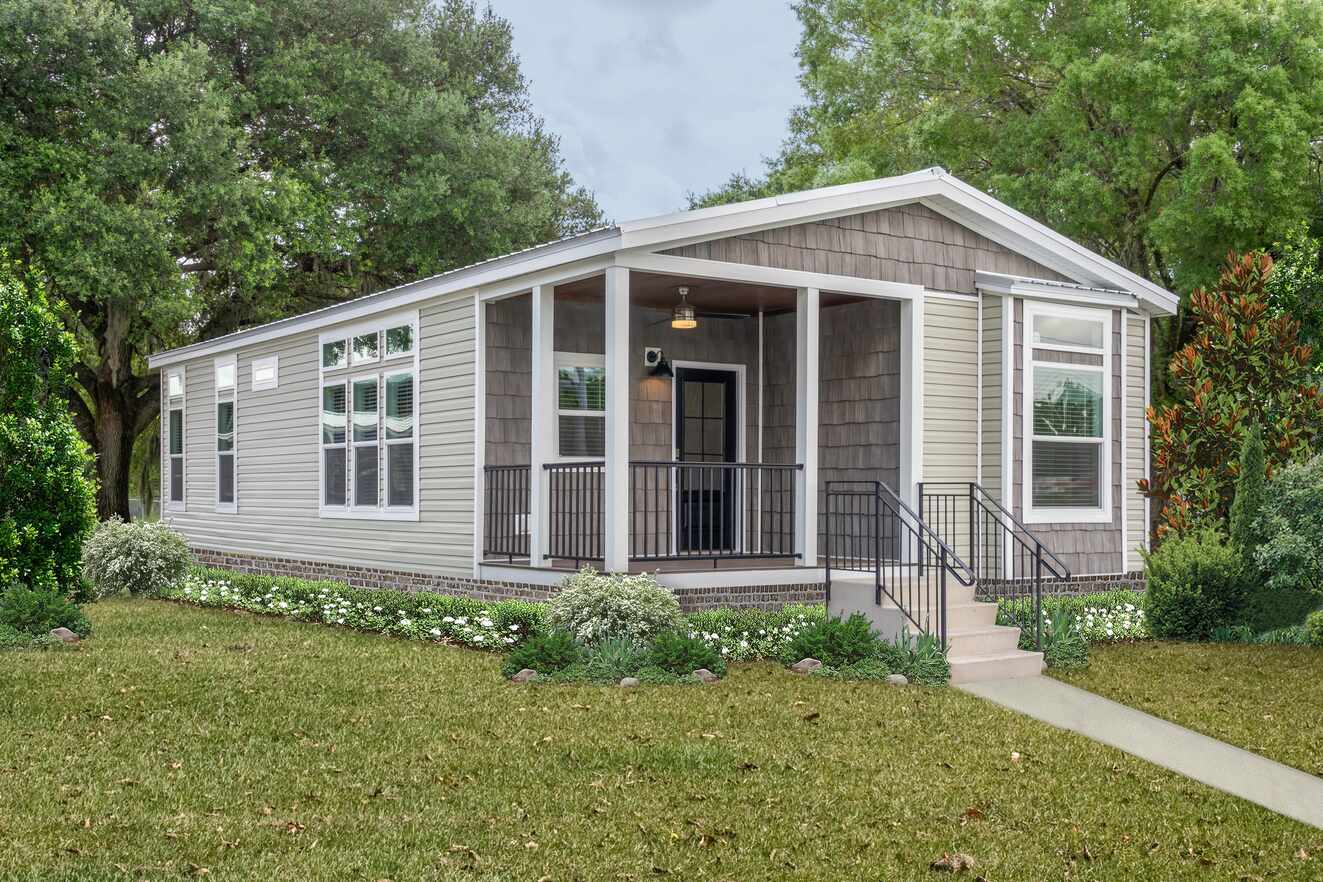

Light - Exterior - Black Farm Light Exterior - Sheathing - 7/16" OSB - All Sides Exterior Trim - Lineals - All Windows ILO Shutters Siding - Board & Batt - Hitch End & Door Side Siding - House Wrap Siding - Lap on Exterior Water Heater Door Siding - Vinyl - Dutch Lap Profile
Light - Exterior - Black Farm Light Exterior - Sheathing - 7/16" OSB - All Sides Exterior Trim - Lineals - All Windows ILO Shutters Siding - Board & Batt - Hitch End & Door Side
Siding - House Wrap Siding - Lap on Exterior Water Heater Door Siding - Vinyl - Dutch Lap Profile Dealer License #: DL1609773
Light - LED T/O
Light - Pin Up (2) - Bedroom
Door - Exterior - 1 Lite 36" w/ int Blind - O/S
Door - Exterior - 1/2 Lite 36" w/Int Blind - O/S
Exterior - Soffits - Vented
Fascia - Cementious
Rafters - 5 1/2" Heeled Truss, 16" O.C.
Roof - Architectural Shingles - 30 Year
Roof - Sheathing 7/16" OSB
Roof Pitch - 3:12 (Nominal)
Roof Type - Flat Truss
Light - Exterior - Black Farm Light
Exterior - Sheathing - 7/16" OSB - All Sides
Exterior Trim - Lineals - All Windows ILO Shutters
Siding - Board & Batt - Hitch End & Door Side
Siding - House Wrap
Siding - Lap on Exterior Water Heater Door
Siding - Vinyl - Dutch Lap Profile
STRUCTURAL 360 Wind Zone 3 Note - Shipping Height - 14' 6" CHASSIS & FLOORS 360 Axles - Recycled Chassis - 10" I Beam Floor Decking - OSB T & G Floor Frame - Bottom Board - Poly Floor Joist - 2x6 @ 16" OC INSULATION 360 Insulation - Ceiling R30 Insulation - Exterior Wall R19 Insulation - Floor R11 PORCH 360 Porch - 5' w/Composite Decking Porch - Rails & Posts - Vinyl - White Porch - Black Spindles SIDEWALL & INTERIOR WALLS 360 Interior Walls - 2 x 3 & 2 x 4 w/1" Bottom & 1" Top Plate Sidewalls - 108"
Sidewalls - 2" x 6" - 16" O.C. WINDOWS 360 Window - Insulated w/Out Grids EXTERIOR DOORS 360 Door - Exterior - 1 Lite 36" w/ int Blind - O/S Door - Exterior - 1/2 Lite 36" w/Int Blind - O/S Exterior - Soffits - Vented Fascia - Cementious Rafters - 5 1/2" Heeled Truss, 16" O.C. Roof - Architectural Shingles - 30 Year Roof - Sheathing 7/16" OSB Roof Pitch - 3:12 (Nominal) Roof Type - Flat Truss Light - Exterior - Black Farm Light Exterior - Sheathing - 7/16" OSB - All Sides Exterior Trim - Lineals - All Windows ILO Shutters Siding - Board & Batt - Hitch End & Door Side Siding - House Wrap Siding - Lap on Exterior Water Heater Door Siding - Vinyl - Dutch Lap Profile Adjustable Shelf - Overhead - 1/2" Adjustable Shelves - Overhead - 2 Shelves Base Cab - Drawer Bank in Kitchen (1) Cab Doors - Shaker Hardwood Doors & Wrapped Stiles Cabs - Interior - Finished to Match (except Dr Backs & Drws) Cabs - Soft Close Doors T/O Cabs - Stile - 3/4" Overhead Cab - Finished Bottoms Overhead Cab - Over Range Countertop - Solid Surface - Kitchen & Bath & Hallway Hardware - Cabinet Pulls - Pewter Hardware - Hidden Hinges Tile Backsplash - Single Row Tile Backsplash - Behind Range to Microwave Appliances - Stainless Steel Microwave - Over Range Range Hood - Cabinet w/Doors (per Plan) Refrigerator - 16.11 CF 30" Center Depth Bottom Freezer w/Ice maker Range - Electric - Slide In
Adjustable Shelf - Overhead - 1/2" Adjustable Shelves - Overhead - 2 Shelves Base Cab - Drawer Bank in Kitchen (1) Cab Doors - Shaker Hardwood Doors & Wrapped Stiles Cabs - Interior - Finished to Match (except Dr Backs & Drws) Cabs - Soft Close Doors T/O Cabs - Stile - 3/4" Overhead Cab - Finished Bottoms Overhead Cab - Over Range Countertop - Solid Surface - Kitchen & Bath & Hallway
Hardware - Cabinet Pulls - Pewter Hardware - Hidden Hinges Tile Backsplash - Single Row Tile Backsplash - Behind Range to Microwave Appliances - Stainless Steel Microwave - Over Range Range Hood - Cabinet w/Doors (per Plan) Refrigerator - 16.11 CF 30" Center Depth Bottom Freezer w/Ice maker Range - Electric - Slide In
Faucet - Anti-Scald Tub/Shower Faucet - Single Lever - Lavy Sink - Lavy - Solid Surface Mirror - Over Lavy Trimmed w/2" Stiles Ship Loose - Towel Bar & Tissue Holder Shower - 60" DumaWall Faux Tile Glass Enclosure - Clear Glass - Frameless Toilet - Raised - Comfort Height Lavy - 36" High Cabinets All Bath(s) Tile Backsplash - Single Row Overhead Cab - Toilet Topper Light - LED - Bath Over Lavy
Faucet - Anti-Scald Tub/Shower Faucet - Single Lever - Lavy Sink - Lavy - Solid Surface Mirror - Over Lavy Trimmed w/2" Stiles Ship Loose - Towel Bar & Tissue Holder Shower - 60" DumaWall Faux Tile
Glass Enclosure - Clear Glass - Frameless Toilet - Raised - Comfort Height Lavy - 36" High Cabinets All Bath(s) Tile Backsplash - Single Row Overhead Cab - Toilet Topper Light - LED - Bath Over Lavy
Blinds - 2" Faux Wood T/O - White Ceiling - 9' Flat Ceiling - Knock Down Door - Interior - Pocket Door - Interior - 5 Panel T/O Shirt/Skirt - Master Closet Door - Interior - 5 Panel Closet Hardware - Door Interior Knobs Hardware - Door Interior - Pocket Door Floor Covering - Laminate ILO Vinyl (per Sq Ft) Molding - Baseboard - 3" T/O Molding - Cove 3" - T/O T & T - T/O w/Trimmed Windows & Drs Window Trim - 2" White Stiles DINING/LIVING ROOM CABINETS 360 Tile Backsplash – Hall BEDROOM CABINETS 360 Base Cab - Night Stands w/Overheads Tile Backsplash - Single Row Countertop - Solid Surface - Bedroom Chest Ceiling Fan - Installed - 42" Satin Ceiling Fan - Installed - 52" Satin Ceiling Fan - Wire and Brace Only Light - LED - Over Shower Light - LED T/O Light - Pin Up (2) - Bedroom
Blinds - 2" Faux Wood T/O - White Ceiling - 9' Flat Ceiling - Knock Down Door - Interior - Pocket Door - Interior - 5 Panel T/O Shirt/Skirt - Master Closet Door - Interior - 5 Panel Closet Hardware - Door Interior Knobs Hardware - Door Interior - Pocket Door Floor Covering - Laminate ILO Vinyl (per Sq Ft) Molding - Baseboard - 3" T/O Molding - Cove 3" - T/O T & T - T/O w/Trimmed Windows & Drs
Window Trim - 2" White Stiles DINING/LIVING ROOM CABINETS 360 Tile Backsplash – Hall BEDROOM CABINETS 360 Base Cab - Night Stands w/Overheads Tile Backsplash - Single Row Countertop - Solid Surface - Bedroom Chest Ceiling Fan - Installed - 42" Satin Ceiling Fan - Installed - 52" Satin Ceiling Fan - Wire and Brace Only Light - LED - Over Shower
Images of homes are solely for illustrative purposes and should not be relied upon. Images may not accurately represent the actual condition of a home as constructed, and may contain options which are not standard on all homes.
Light - LED T/O
Light - Pin Up (2) - Bedroom
